All Specifications
DisplayBrightness (ANSI lumens)
3400
Resolution
1080P (1920x1080)
Native Aspect Ratio
16:9
Contrast Ratio (FOFO)
15,000:1
Display Color
30-bit (1.07 billion colors)
Light Source
Lamp
Light Source Life
a. Normal 4000 hrs, c. SmartEco 15000 hrs, b. ECO 10000 hrs
Throw Ratio
1.13~1.47
Zoom Ratio
1.3x
Lens
F/# = 1.84 ~ 2.47, f = 12 ~ 15.6 mm
Projection Offset (Full-Height)
105%
Keystone Adjustment
1D, (Auto) Vertical ± 40 degrees
Rec. 709 Coverage
83%
Picture Modes
Bright, Infographic, Presentation, Spreadsheet, Video Conference
Input Lag
33.4 ms (1080P 60Hz)
Resolution Support
VGA(640 x 480) to Full HD(1920 x 1080)
Horizontal Frequency
15K~102KHz
Vertical Scan Rate
23~120Hz

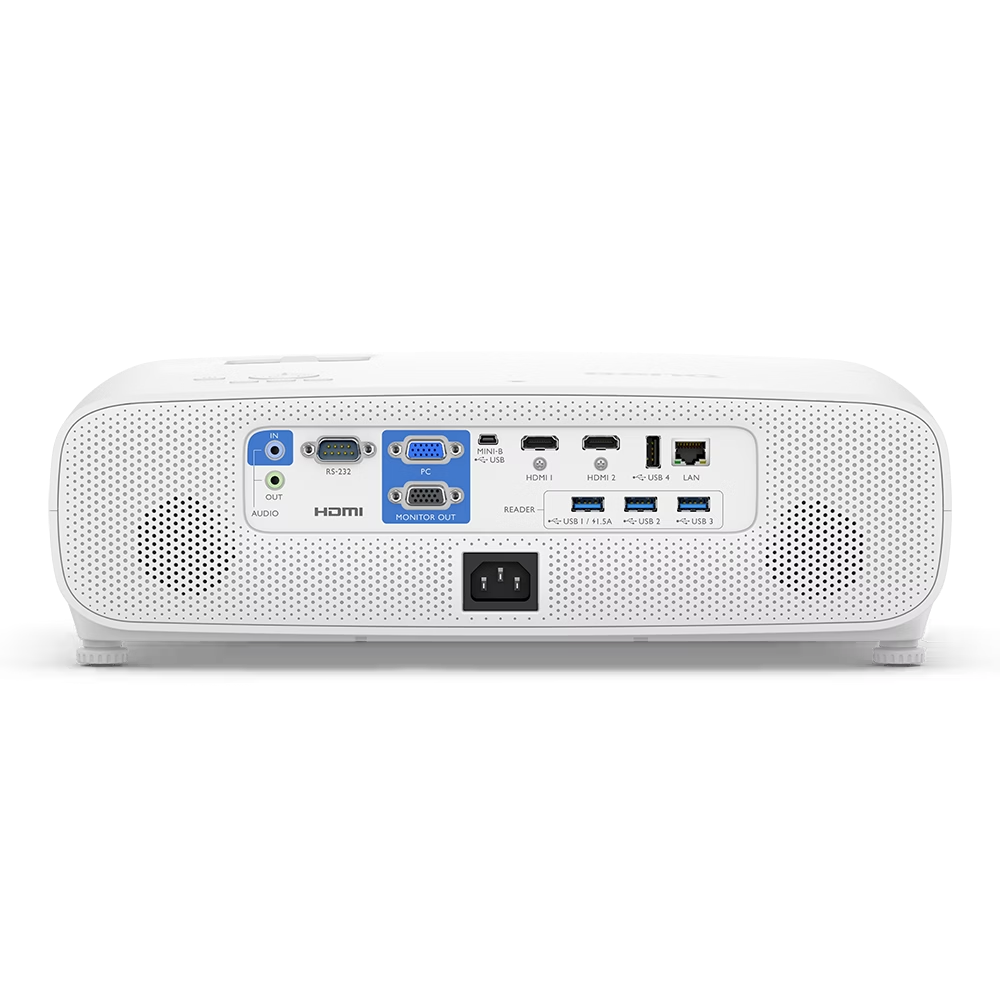

PC in (D-sub 15pin)
(x1)
Monitor out (D-sub 15pin)
(x1)
HDMI in
(x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4)
LAN (RJ45)
(x1)
USB Type A
USB Type A-1 (3.0/Power Supply1.5A), USB Type A-2 (3.0/Power Supply1.0A), USB Type A-3 (3.0/Power Supply1.0A), USB Type A-4 (2.0/Wireless Dongle), USB Type A-5 (2.0/Power Supply 0.9A)
USB Type Mini B
(x1)
RS232 in (DB-9pin)
(x1)
Speaker
(x2), 5W
Audio in (3.5mm Mini Jack)
(x1)
Audio out (3.5mm Mini Jack)
(x1)
Operating Temperature
0~40℃
Power Supply
AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)
350W
Stand-by Power Consumption
<0.5W
Acoustic Noise (Typ./Eco.)(dB)
32/30
Wireless USB dongle
EZC-5201BS 1080p, (Standard)
Remote Control w/ Battery
RCI023
Power Cord (by region)
x1 (1.8M)
VGA(D-sub 15pin) Cable
1 (1.5m)
3D Glasses
(Optional), DGD5
Quick Start Guide
(x1) 21L
Warranty Card (by region)
Yes
Universal Ceiling Mount
(Optional), CM00G3
Launcher
Uni Launcher
Built-in OS
Yes, Windows
Bluetooth
Yes, Bluetooth 4.2
Wi-Fi Standard
802.11 a/b/g/n/ac (2.4G/5G)
Wireless Projection
AirPlay, Google Cast, Miracast
Preload Apps
Skype for business, Teamviewer Meeting
Dimensions (WxHxD) (mm)
380 x 127 x 263
Net Weight (kg)
4.2
Dimensions (WxHXD) (inch)
14.9 x 4.9 x 10.35
Net Weight (lb)
9.25
Projection System
DLP
