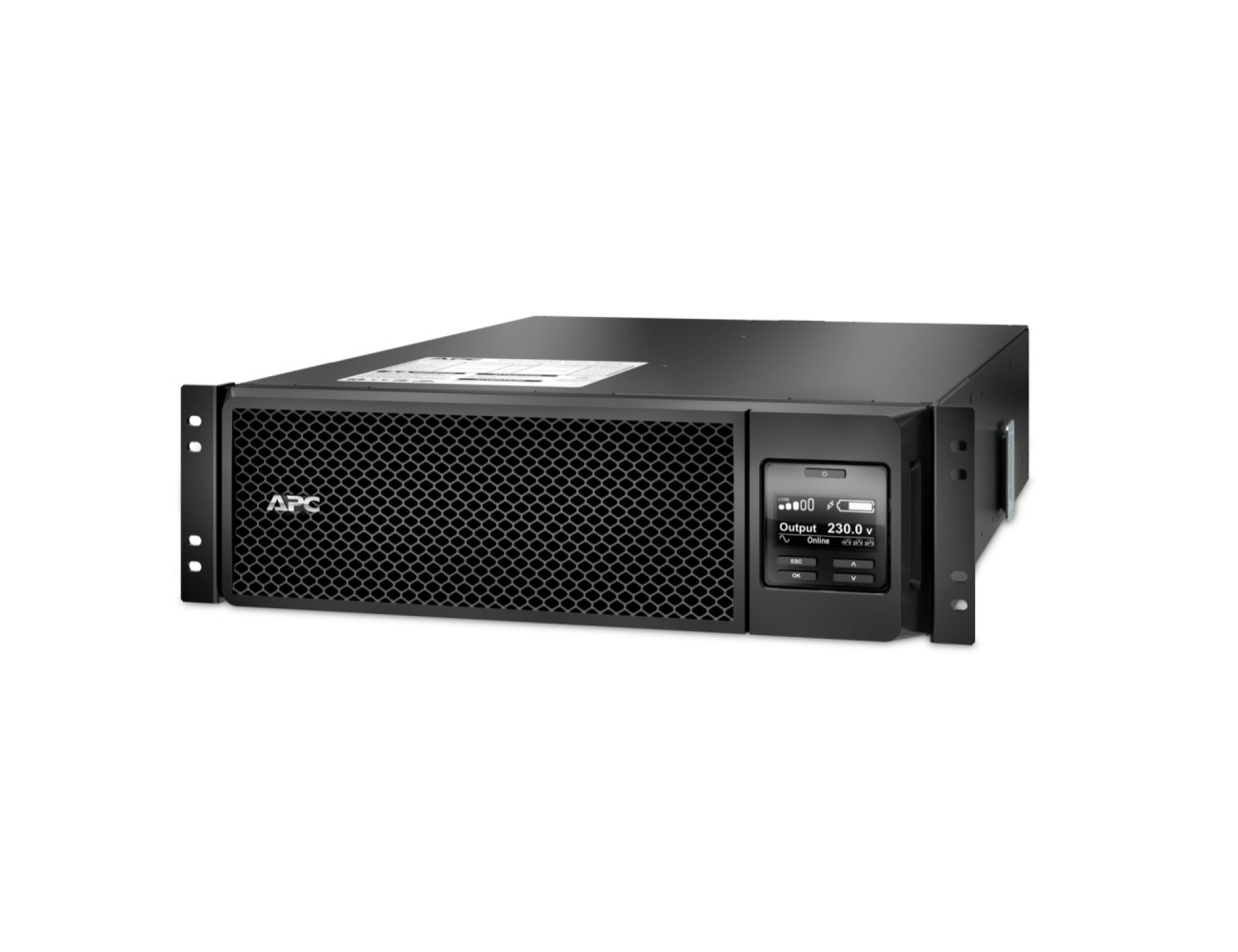

APC SRT5KRMXLI Smart-UPS On-Line 5kVA

В наличии: In stock 10 ОБРАЗЕЦ
2499000 AMD

Бренд:

В наличии:

КАТЕГОРИИ: UPS

Specifications

Overview
PresentationHigh density, double-conversion on-line power protection with scalable runtime.
Lead timeUsually in Stock
Main
Run time for load
W
information_stroke
Min-max: 450-4500 W
3min 59s
Max. Capacity Used
information_stroke
100 %
Main Input Voltage230 V
Product or component typeUninterruptible power supply (UPS)
Other Input Voltage220 V
240 V
Main Output Voltage230 V
Other Output Voltage220 V
240 V
rated power in W4500 W
rated power in VA5000 VA
output connection type6 IEC 60320 C13
2 IEC Jumpers
4 IEC 60320 C19
Number of rack unit3U
Provided equipmentDocumentation CD
Installation guide
Rack mounting hardware
Rack mounting brackets
Rack mounting support rails
Temperature probe
Warranty card
Web/SNMP management card
Range of productSmart-UPS On-Line
Batteries & Runtime
Run Time
View Runtime Graph
Efficiency
View Efficiency Graph
Battery typeLead-acid battery
Battery voltage192 V
Extended runtime1
Number of battery filled slots0
Battery recharge time1.5 h
Number of battery replacement quantity1
Battery life3…5 year(s)
Replacement battery
APCRBC140
Battery charger power560 W rated
General
Number of power module filled slots0
Number of power module free slots0
product web sub-familyHigh density
RedundantNo
UPS typeDouble conversion online
Physical
ColourBlack
Height13 cm
Width43.2 cm
Depth71.94 cm
Net weight54.43 kg
Mounting locationFront
Mounting preferenceNo preference
Mounting modeRack-mounted
Two post mountable0
USB compatibleYes
Mounting positionHorizontal
Input
Input voltage limits100...275 V adjustable (half load)
Number of input connectors1 hard wire 3-wire (1P + N + E)
Network frequency40...70 Hz auto-sensing
Output
Bypass typeInternal bypass (automatic and manual)
Crest factor3 : 1
Harmonic distortionLess than 2 %
Maximum configurable power in VA5000 VA
Maximum configurable power in W4500 W
Wave typeSine wave
Output frequency50/60 Hz +/- 3 Hz sync to mains
Conformance
Product certificationsCE
EAC
IRAM
RCM
VDE
MarkingCE Mark
StandardsEN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental
Acoustic level55 dBA
Heat dissipation931 Btu/h
Operating altitude0...10000 ft
Ambient air temperature for operation0…40 °C
Ambient air temperature for storage-15…45 °C
Storage altitude0.0000000000…15240.0000000000 m
IP degree of protectionIP20
Relative humidity0…95 % non-condensing
Storage Relative Humidity0…95 % non-condensing
Communications & Management
Emergency power offYes
Free slots1
Preinstalled deviceNetwork management card 3 with environmental monitoring
AlarmAudible and visible alarms : prioritized by severity
Surge Protection and Filtering
Surge energy rate480 J
