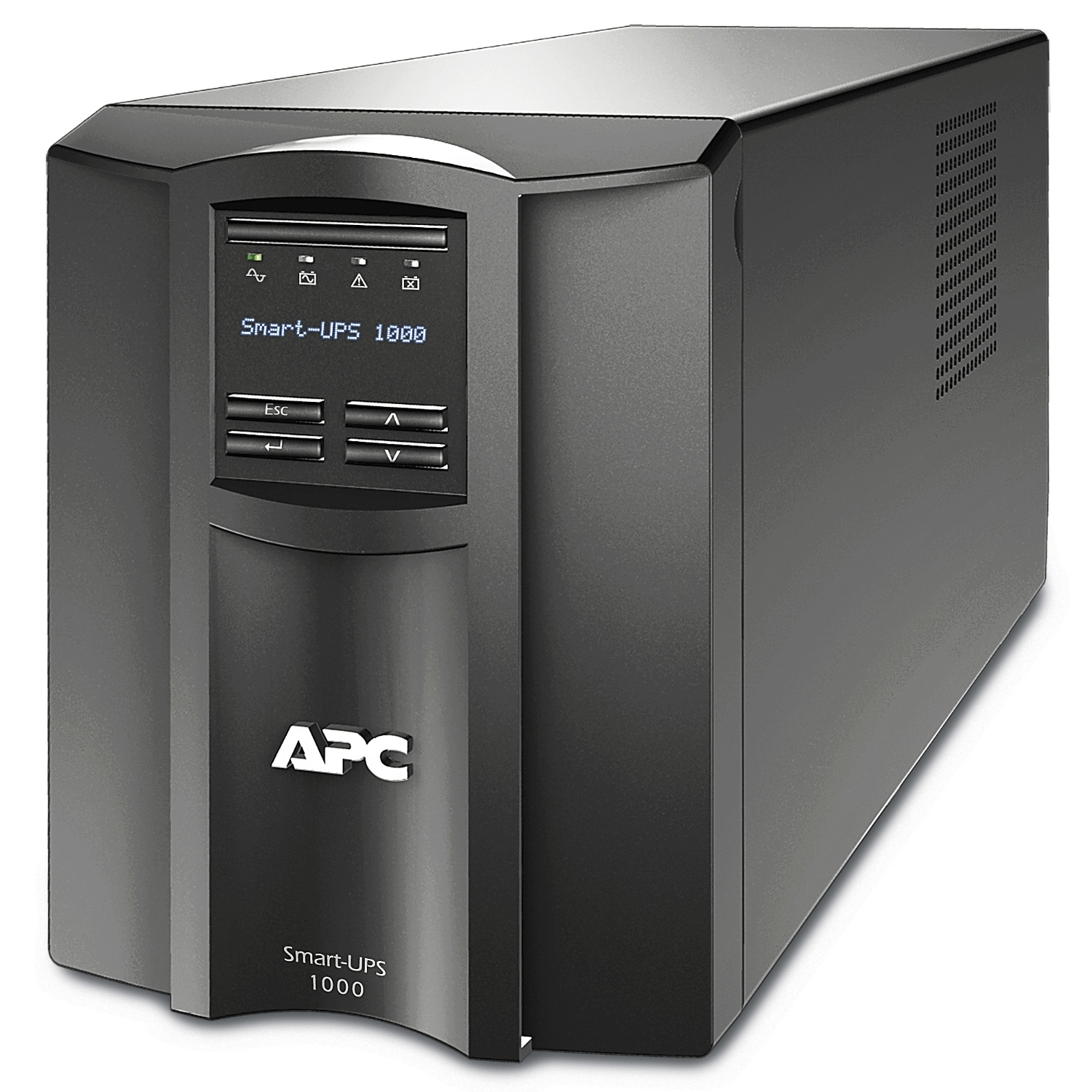

APC SMT1000I Smart-UPS 1000VA

В наличии: In stock 10 ОБРАЗЕЦ
349000 AMD 334900 AMD

Бренд:

В наличии:

КАТЕГОРИИ: UPS

Specifications

Overview
PresentationIntelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead timeUsually Ships within 2 Weeks
Main
Run time for load
W
information_stroke
Min-max: 70-700 W
5min 49s
Max. Capacity Used
information_stroke
100 %
Main Input Voltage230 V
Other Input Voltage220 V
240 V
Main Output Voltage230 V
Other Output Voltage220 V
240 V
Kw Rating700 W
rated power in VA1000 VA
Product or Component TypeUninterruptible power supply (UPS)
Input Connection TypeIEC 320 C14
output connection type8 IEC 320 C13
2 IEC Jumpers
Battery TypeLead-Acid battery
Provided equipmentUSB cable
Documentation CD
Installation guide
Smart UPS signalling RS-232 cable
Range of ProductSmart-UPS
Complementary
Communication port typeSmartSlot
Batteries & Runtime
Run Time
View Runtime Graph
Efficiency
View Efficiency Graph
Additional informationConfigurable for 220 : 230 or 240 nominal output voltage
Extendable Run Time0
Included Battery Modules0
Battery Slots Empty0
Typical recharge time3 h
RBC Quantity1
Battery life3…5 year(s)
Replacement battery
RBC6
Battery Charge Power (Watts)88 W rated
General
Number of power module0
Number of power module filled slots0
Number of power module free slots0
RedundantNo
Physical
colorBlack
Height8.62 in (21.9 cm)
Width6.73 in (17.1 cm)
Depth17.28 in (43.9 cm)
Net Weight41.58 lb(US) (18.86 kg)
Mounting LocationFront
Mounting preferenceNo preference
Mounting ModeNot rack-mountable
Two post mountable0
USB compatibleNo
Input
Efficiency at full load151...302 V adjustable
160...286 V
Input Frequency50/60 Hz +/- 3 Hz auto-sensing
Output
Harmonic distortionLess than 5 % at full load
Maximum configurable power in VA1000 VA
Max Configurable Power (Watts)700 W
TopologyLine Interactive
Wave typeSine wave
Output Frequency (sync to mains)47...53 Hz for 50 Hz nominal sync to mains
57...63 Hz for 60 Hz nominal sync to mains
Conformance
Product CertificationsCE
EAC
RCM
VDE
StandardsEN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental
Acoustic level41 dBA
Online Thermal Dissipation100 Btu/h
Operating altitude0...10000 ft
Ambient air temperature for operation32…104 °F (0…40 °C)
Ambient Air Temperature for Storage5…113 °F (-15…45 °C)
Storage altitude0…50000 ft (0.0000000000…15240.0000000000 m)
Relative Humidity0…95 %
Storage Relative Humidity0…95 %
Communications & Management
control panelMulti-function LCD status and control console
Emergency Power Off (EPO)Optional
Free slots1
AlarmAlarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating459 J
FilteringFull time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m
Ordering and shipping details
GTIN731304268673
Country of originPH
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height14.57 in (37.000 cm)
Package 1 Width
