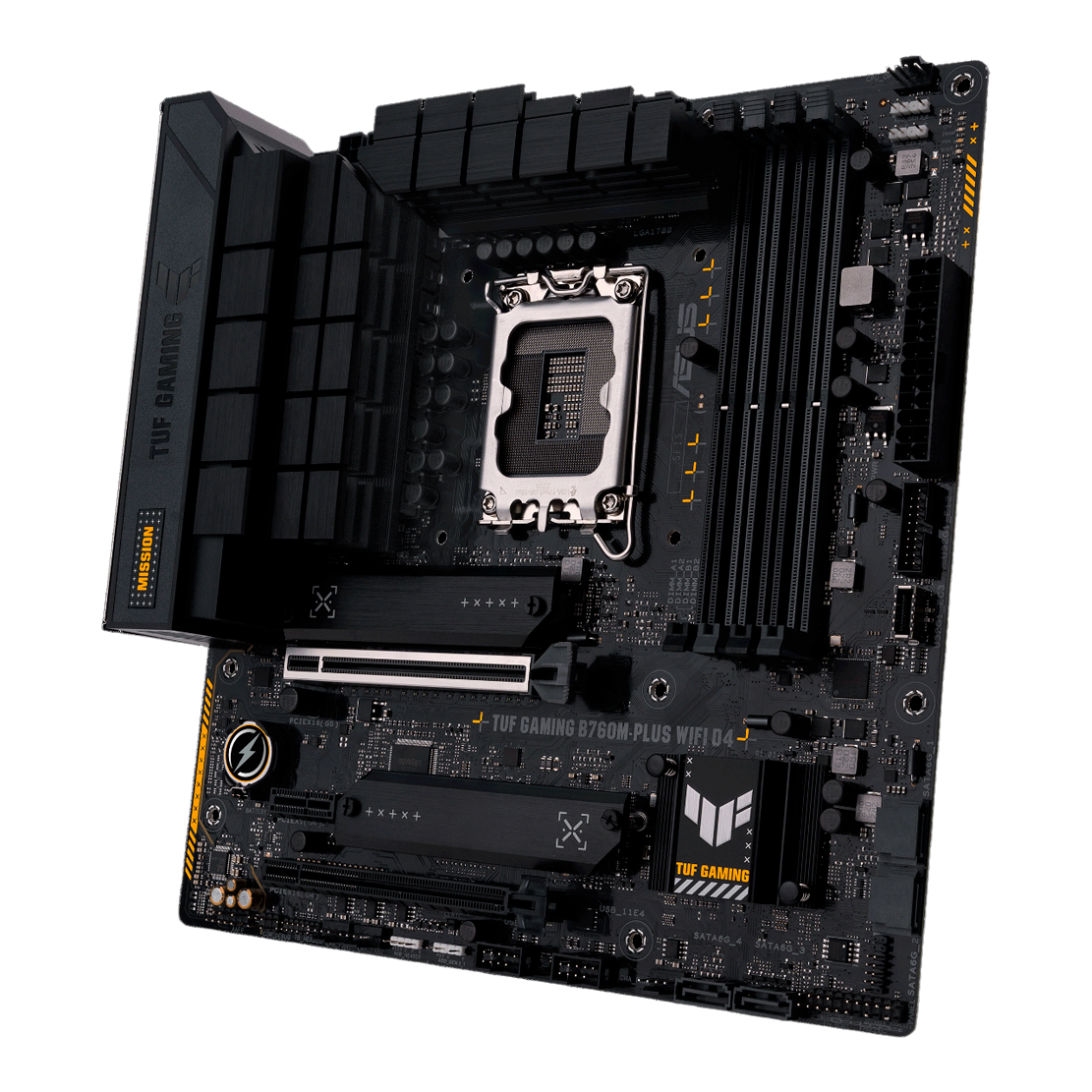

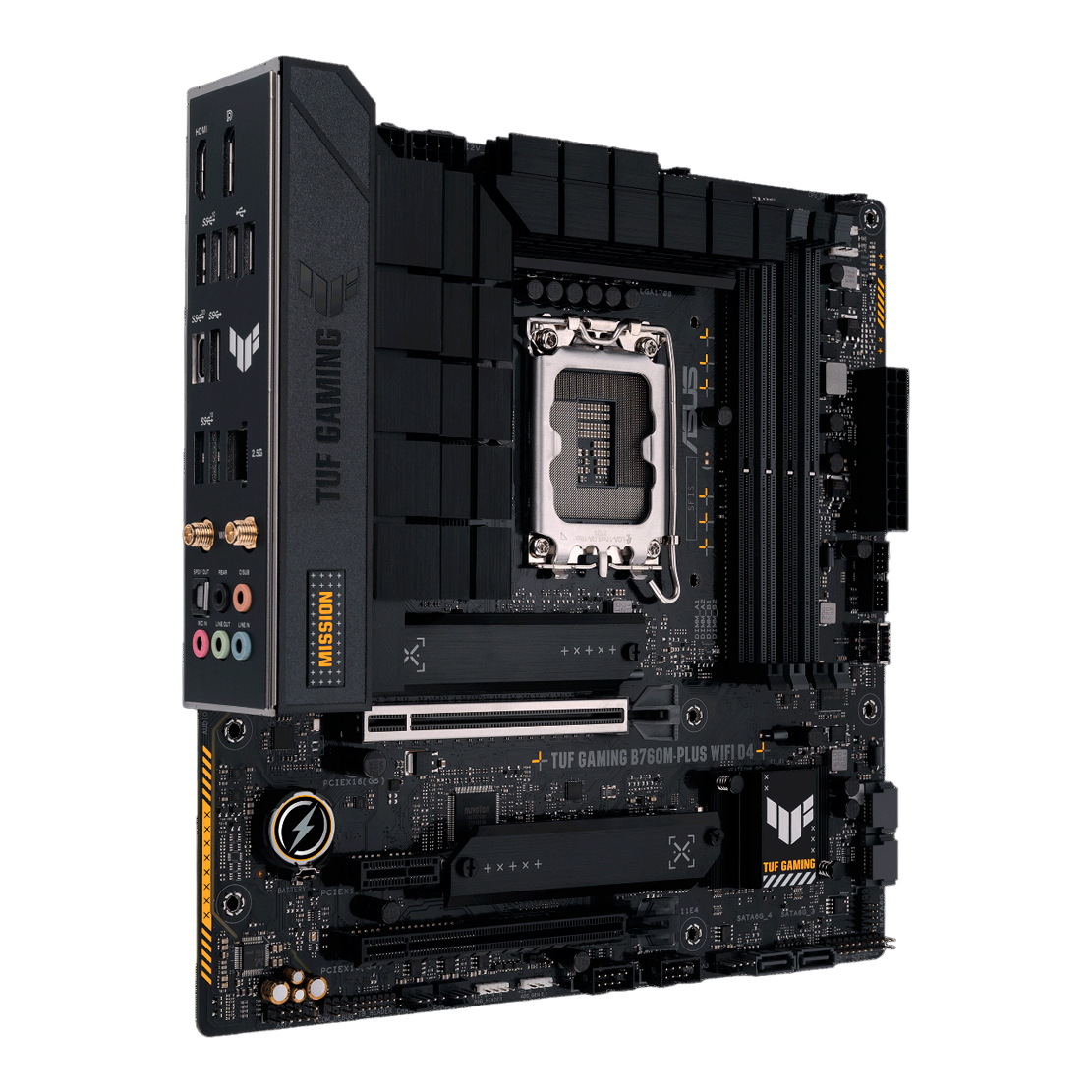

| ASUS TUF GAMING B760M-PLUS WIFI D4 |
MODEL TUF GAMING B760M-PLUS WIFI D4 CPU INTEL® SOCKET LGA1700 FOR 13TH GEN INTEL® CORE™ & 12TH GEN INTEL® CORE™, PENTIUM® GOLD AND CELERON® PROCESSORS* SUPPORTS INTEL® TURBO BOOST TECHNOLOGY 2.0 AND INTEL® TURBO BOOST MAX TECHNOLOGY 3.0** * REFER TO WWW.ASUS.COM FOR CPU SUPPORT LIST. ** INTEL® TURBO BOOST MAX TECHNOLOGY 3.0 SUPPORT DEPENDS ON THE CPU TYPES. CHIPSET INTEL® B760 CHIPSET MEMORY 4 X DIMM, MAX. 128GB, DDR4 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 NON-ECC, UN-BUFFERED MEMORY* DUAL CHANNEL MEMORY ARCHITECTURE SUPPORTS INTEL® EXTREME MEMORY PROFILE (XMP) OPTIMEM II * SUPPORTED MEMORY TYPES, DATA RATE (SPEED), AND NUMBER OF DRAM MODULES VARY DEPENDING ON THE CPU AND MEMORY CONFIGURATION, FOR MORE INFORMATION PLEASE REFER TO CPU/MEMORY SUPPORT UNDER THE SUPPORT TAB OR VISIT HTTPS://WWW.ASUS.COM/SUPPORT/ 4 X DIMM, MAX. 192GB, DDR4 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 NON-ECC, UN-BUFFERED MEMORY* DUAL CHANNEL MEMORY ARCHITECTURE SUPPORTS INTEL® EXTREME MEMORY PROFILE (XMP) OPTIMEM II * SUPPORTED MEMORY TYPES, DATA RATE (SPEED), AND NUMBER OF DRAM MODULES VARY DEPENDING ON THE CPU AND MEMORY CONFIGURATION, FOR MORE INFORMATION PLEASE REFER TO CPU/MEMORY SUPPORT UNDER THE SUPPORT TAB OR VISIT HTTPS://WWW.ASUS.COM/SUPPORT/ GRAPHICS 1 X DISPLAYPORT** 1 X HDMI® PORT*** * GRAPHICS SPECIFICATIONS MAY VARY BETWEEN CPU TYPES. PLEASE REFER TO WWW.INTEL.COM FOR ANY UPDATES. ** SUPPORTS MAX. 4K@60HZ AS SPECIFIED IN DISPLAYPORT 1.4. ***SUPPORTS 4K@60HZ AS SPECIFIED IN HDMI 2.1. EXPANSION SLOTS INTEL® 13TH & 12TH GEN PROCESSORS 1 X PCIE 5.0 X16 SLOT INTEL® B760 CHIPSET 1 X PCIE 4.0 X16 SLOT (SUPPORTS X4 MODE) 1 X PCIE 4.0 X1 SLOT - TO ENSURE COMPATIBILITY OF THE DEVICE INSTALLED, PLEASE REFER TO HTTPS://WWW.ASUS.COM/SUPPORT/ FOR THE LIST OF SUPPORTED PERIPHERALS. STORAGE TOTAL SUPPORTS 2 X M.2 SLOTS AND 4 X SATA 6GB/S PORTS* INTEL® 13TH & 12TH GEN PROCESSORS M.2_1 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 4.0 X4 MODE) INTEL® B760 CHIPSET M.2_2 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 4.0 X4 MODE) 4 X SATA 6GB/S PORTS * INTEL® RAPID STORAGE TECHNOLOGY SUPPORTS SATA RAID 0/1/5/10. ETHERNET 1 X REALTEK 2.5GB ETHERNET TUF LANGUARD WIRELESS & BLUETOOTH WI-FI 6 2X2 WI-FI 6 (802.11 A/B/G/N/AC/AX) SUPPORTS 2.4/5GHZ FREQUENCY BAND BLUETOOTH® V5.2* *THE BLUETOOTH VERSION MAY VARY, PLEASE REFER TO THE WI-FI MODULE MANUFACTURER'S WEBSITE FOR THE LATEST SPECIFICATIONS. USB REAR USB (TOTAL 8 PORTS) 1 X USB 3.2 GEN 2X2 PORT (1 X USB TYPE-C®) 4 X USB 3.2 GEN 2 PORTS (4 X TYPE-A) 1 X USB 3.2 GEN 1 PORT (1 X TYPE-A) 2 X USB 2.0 PORTS (2 X TYPE-A) FRONT USB (TOTAL 7 PORTS) 1 X USB 3.2 GEN 1 CONNECTOR (SUPPORTS USB TYPE-C®)* 1 X USB 3.2 GEN 1 HEADER SUPPORTS ADDITIONAL 2 USB 3.2 GEN 1 PORTS 2 X USB 2.0 HEADERS SUPPORT ADDITIONAL 4 USB 2.0 PORTS* * USB_E4 AND USB_EC3 CAN ONLY BE ENABLED/DISABLED SIMULTANEOUSLY. AUDIO REALTEK 7.1 SURROUND SOUND HIGH DEFINITION AUDIO CODEC - SUPPORTS: JACK-DETECTION, MULTI-STREAMING, FRONT PANEL JACK-RETASKING - SUPPORTS UP TO 24-BIT/192 KHZ PLAYBACK " AUDIO FEATURES - AUDIO SHIELDING - REAR OPTICAL S/PDIF OUT PORT - PREMIUM AUDIO CAPACITORS - DEDICATED AUDIO PCB LAYERS BACK PANEL I/O PORTS 1 X USB 3.2 GEN 2X2 PORT (1 X USB TYPE-C®) 4 X USB 3.2 GEN 2 PORTS (4 X TYPE-A) 1 X USB 3.2 GEN 1 PORT (1 X TYPE-A) 2 X USB 2.0 PORTS (2 X TYPE-A) 1 X DISPLAYPORT 1 X HDMI® PORT 1 X WI-FI MODULE 1 X REALTEK 2.5GB ETHERNET PORT 5 X AUDIO JACKS 1 X OPTICAL S/PDIF OUT PORT INTERNAL I/O CONNECTORS I/O CONNECTORS FAN AND COOLING RELATED 1 X 4-PIN CPU FAN HEADER 1 X 4-PIN CPU OPT FAN HEADER 1 X 4-PIN AIO PUMP HEADER 3 X 4-PIN CHASSIS FAN HEADERS POWER RELATED 1 X 24-PIN MAIN POWER CONNECTOR 1 X 8-PIN +12V POWER CONNECTOR 1 X 4-PIN +12V POWER CONNECTOR STORAGE RELATED 2 X M.2 SLOTS (KEY M) 4 X SATA 6GB/S PORTS USB 1 X USB 3.2 GEN 1 CONNECTOR (SUPPORTS USB TYPE-C®) 1 X USB 3.2 GEN 1 HEADER SUPPORTS ADDITIONAL 2 USB 3.2 GEN 1 PORTS 2 X USB 2.0 HEADERS SUPPORT ADDITIONAL 4 USB 2.0 PORTS MISCELLANEOUS 3 X ADDRESSABLE GEN 2 HEADERS 1 X AURA RGB HEADER 1 X CLEAR CMOS HEADER 1 X FRONT PANEL AUDIO HEADER (AAFP) 1 X 20-3 PIN SYSTEM PANEL HEADER WITH CHASSIS INTRUDE FUNCTION 1 X THUNDERBOLT™ (USB4®) HEADER SPECIAL FEATURES ASUS TUF PROTECTION - DIGI+ VRM (- DIGITAL POWER DESIGN WITH DRMOS) - ESD GUARDS - TUF LANGUARD - OVERVOLTAGE PROTECTION - SAFESLOT CORE+ - STAINLESS-STEEL BACK I/O ASUS Q-DESIGN - M.2 Q-LATCH - Q-DIMM - Q-LED (CPU [RED], DRAM [YELLOW], VGA [WHITE], BOOT DEVICE [YELLOW GREEN]) - Q-SLOT ASUS THERMAL SOLUTION - M.2 HEATSINK - VRM HEATSINK DESIGN ASUS EZ DIY - CPU SOCKET LEVER PROTECTOR - PROCOOL - PRE-MOUNTED I/O SHIELD - SAFEDIMM AURA SYNC - AURA RGB HEADER - ADDRESSABLE GEN 2 HEADERS SOFTWARE FEATURES ASUS EXCLUSIVE SOFTWARE ARMOURY CRATE - AURA CREATOR - AURA SYNC - FAN XPERT 2+ - POWER SAVING - TWO-WAY AI NOISE CANCELATION AI SUITE 3 DIGI+ VRM - PC CLEANER TUF GAMING CPU-Z DTS AUDIO PROCESSING MYASUS NORTON 360 FOR GAMERS WINRAR UEFI BIOS ASUS EZ DIY - ASUS CRASHFREE BIOS 3 - ASUS EZ FLASH 3 - ASUS UEFI BIOS EZ MODE BIOS 128 MB FLASH ROM, UEFI AMI BIOS MANAGEABILITY WOL BY PME, PXE ACCESSORIES CABLES 2 X SATA 6GB/S CABLES MISCELLANEOUS 1 X ASUS WI-FI MOVING ANTENNAS 1 X M.2 RUBBER PACKAGE 1 X SCREW PACKAGE FOR M.2 SSD 1 X TUF GAMING STICKER DOCUMENTATION 1 X TUF CERTIFICATION CARD 1 X USER GUIDE OPERATING SYSTEM WINDOWS® 11, WINDOWS® 10 64-BIT FORM FACTOR MATX FORM FACTOR 9.6INCH X 9.6 INCH ( 24.4 CM X 24.4 CM ) |
