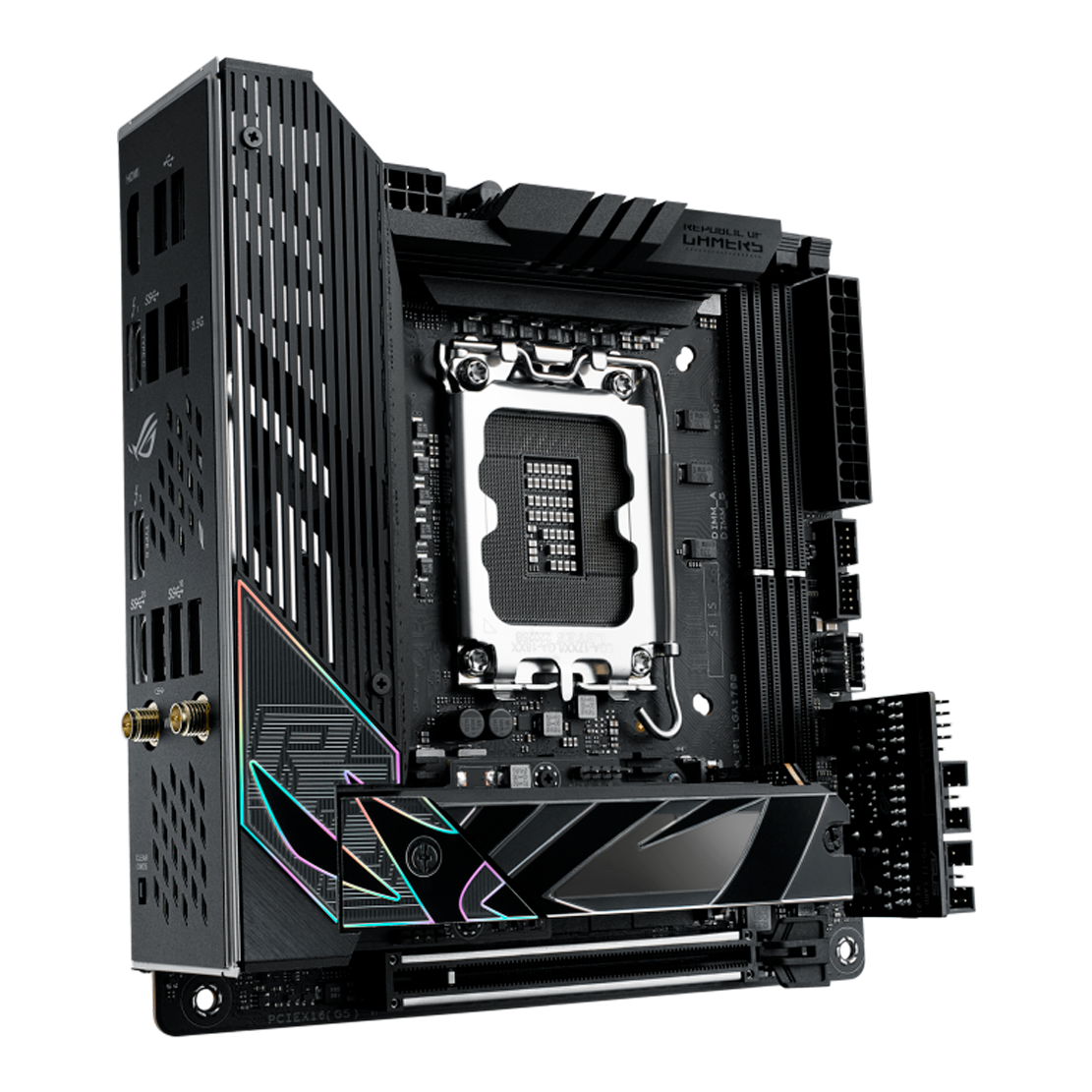

| ASUS ROG STRIX Z790-I GAMING WIFI |

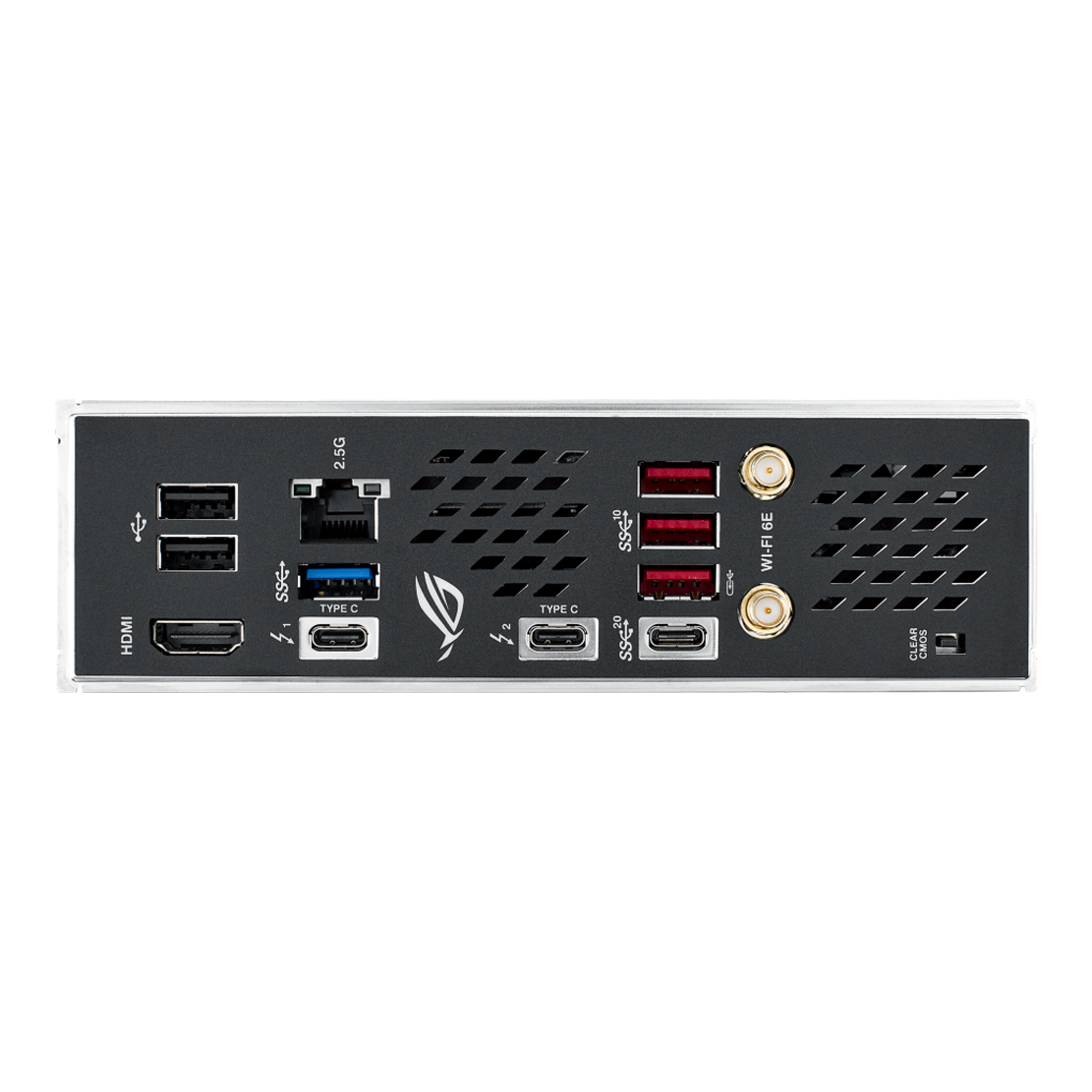

CPU INTEL® SOCKET LGA1700 FOR INTEL® CORE™ 14TH & 13TH GEN PROCESSORS, INTEL® CORE™ 12TH GEN, PENTIUM® GOLD AND CELERON® PROCESSORS SUPPORTS INTEL® TURBO BOOST TECHNOLOGY 2.0 AND INTEL® TURBO BOOST MAX TECHNOLOGY 3.0** * REFER TO WWW.ASUS.COM FOR CPU SUPPORT LIST. ** INTEL® TURBO BOOST MAX TECHNOLOGY 3.0 SUPPORT DEPENDS ON THE CPU TYPES. CHIPSET INTEL® Z790 CHIPSET MEMORY 2 X DIMM, MAX. 96GB, DDR5 7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHZ NON-ECC, UN-BUFFERED MEMORY* DUAL CHANNEL MEMORY ARCHITECTURE SUPPORTS INTEL® EXTREME MEMORY PROFILE (XMP) OPTIMEM II * WE RECOMMEND ACTIVE AIRFLOW TO ENSURE BETER MEMORY PERFORMANCE * SUPPORTED MEMORY TYPES, DATA RATE(SPEED), AND NUMBER OF DRAM MODULES VARY DEPENDING ON THE CPU AND MEMORY CONFIGURATION, FOR MORE INFORMATION REFER TO WWW.ASUS.COM FOR MEMORY SUPPORT LIST. * NON-ECC, UN-BUFFERED DDR5 MEMORY SUPPORTS ON-DIE ECC FUNCTION GRAPHICS 1 X HDMI® PORT*** 2 X INTEL® THUNDERBOLT™ 4 PORTS (USB TYPE-C®) SUPPORT DISPLAYPORT AND THUNDERBOLT™ VIDEO OUTPUTS**** * GRAPHICS SPECIFICATIONS MAY VARY BETWEEN CPU TYPES. PLEASE REFER TO WWW.INTEL.COM FOR ANY UPDATES. *** SUPPORTS 4K@60HZ AS SPECIFIED IN HDMI 2.1. **** VGA RESOLUTION SUPPORT DEPENDS ON PROCESSORS' OR GRAPHIC CARDS' RESOLUTION. EXPANSION SLOTS INTEL® 13TH & 12TH GEN PROCESSORS* 1 X PCIE 5.0 X16 SLOT (SUPPORTSX16 OR X8/X8 MODE) * PLEASE CHECK THE PCIE BIFURCATION TABLE ON THE SUPPORT SITE (HTTPS://WWW.ASUS.COM/SUPPORT/FAQ/1037507/). - TO ENSURE COMPATIBILITY OF THE DEVICE INSTALLED, PLEASE REFER TO HTTPS://WWW.ASUS.COM/SUPPORT/ FOR THE LIST OF SUPPORTED PERIPHERALS. A RESOLUTION SUPPORT DEPENDS ON PROCESSORS' OR GRAPHIC CARDS' RESOLUTION. STORAGE TOTAL SUPPORTS 2 X M.2 SLOTS AND 2 X SATA 6GB/S PORTS INTEL® 13TH & 12TH GEN PROCESSORS M.2_1 SLOT (KEY M), TYPE 2280 (SUPPORTS PCIE 5.0 X4 MODE// PCIE 4.0 X4 MODE)*** M.2_2 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 4.0 X4 MODE) 2 X SATA 6GB/S PORTS**** *** M.2_1 COMES FROM INTEL® Z790 CHIPSET WHEN SWITCHED TO PCIE 4.0 X4 MODE **** INSTALL ROG FPS-II CARD TO SUPPORT 2 X SATA 6GB/S PORTS. 2 X SATA 6GB/S PORTS**** *AMD RAIDXPERT2 TECHNOLOGY SUPPORTS BOTH NVME RAID 0/1 AND SATA RAID 0/1. **** INSTALL ROG FPS-II CARD TO SUPPORT 2 X SATA 6GB/S PORTS ETHERNET 1 X INTEL® 2.5GB ETHERNET ASUS LANGUARD WIRELESS & BLUETOOTH WI-FI 6E 2X2 WI-FI 6E (802.11 A/B/G/N/AC/AX) SUPPORTS 2.4/5/6GHZ FREQUENCY BAND* BLUETOOTH V5.3 * WIFI 6E 6GHZ REGULATORY MAY VARY BETWEEN COUNTRIES, AND FUNCTION WILL BE READY IN WINDOWS 11 OR LATER. USB REAR USB (TOTAL 9 PORTS) 2 X THUNDERBOLT™ 4 PORT(S) (2 X USB TYPE-C®) 1 X USB 3.2 GEN 2X2 PORT(S) (1 X USB TYPE-C®) 3 X USB 3.2 GEN 2 PORT(S) (3 X TYPE-A) 1 X USB 3.2 GEN 1 PORT(S) (1 X TYPE-A) 2 X USB 2.0 PORT(S) (2 X TYPE-A) FRONT USB (TOTAL 3 PORTS) 1 X USB 3.2 GEN 2X2 CONNECTOR SUPPORTS 1 USB TYPE-C® 1 X USB 3.2 GEN 1 HEADER(S) SUPPORT(S) 2 ADDITIONAL USB 3.2 GEN 1 PORTS ROG STRIX HIVE (TOTAL 2 PORTS) 1 X USB 3.2 GEN 2 PORT ( 1 X USB TYPE-C®) 1 X USB 2.0 PORT(S) (1 X TYPE-A) ROG FPS-II CARD (TOTAL 3 PORTS) 2 X USB 2.0 HEADER(S) ADDITIONAL 3 USB 2.0 PORTS** AUDIO ROG HIGH DEFINITION AUDIO CODEC ALC4050 - SUPPORTS: JACK-DETECTION - HIGH QUALITY 118 DB SNR STEREO PLAYBACK OUTPUT AND 94 DB SNR RECORDING INPUT - SUPPORTS UP TO 32-BIT/384 KHZ PLAYBACK AUDIO FEATURES - ROG HYPER-GROUNDING TECHNOLOGY - ESS® SABRE9260Q DAC - SILVER-PLATED AUDIO JACKS - OPTICAL S/PDIF OUT PORT & USB TYPE-C® PORT WITH INDEPENT POWER SOLUTION *** ALL AUDIO FUNCTIONS ON ROG STRIX Z790-I GAMING WIFI ARE SUPPORTED THROUGH THE ROG STRIX HIVE. BACK PANEL I/O PORTS 2 X THUNDERBOLT™ 4 USB TYPE-C® PORT(S) 1 X USB 3.2 GEN 2X2 PORT(S) (1 X USB TYPE-C®) 3 X USB 3.2 GEN 2 PORT(S) (3 X TYPE-A) (SUPPORTS ROG STRIX HIVE) 1 X USB 3.2 GEN 1 PORT(S) (1 X TYPE-A) 2 X USB 2.0 PORT(S) (2 X TYPE-A) 1 X HDMI® PORT 1 X WI-FI MODULE 1 X INTEL® 2.5GB ETHERNET PORT 1 X CLEAR CMOS BUTTON INTERNAL I/O CONNECTORS FAN AND COOLING RELATED 1 X 4-PIN CPU FAN HEADER(S) 1 X 4-PIN AIO PUMP HEADER(S) 1 X 4-PIN CHASSIS FAN HEADER(S) POWER RELATED 1 X 24-PIN MAIN POWER CONNECTOR 1 X 8-PIN +12V POWER CONNECTOR STORAGE RELATED 2 X M.2 SLOTS (KEY M) USB 1 X USB 3.2 GEN 2X2 CONNECTOR (SUPPORT(S) USB TYPE-C® ) 1 X USB 3.2 GEN 1 HEADER(S) SUPPORT(S) 2 ADDITIONAL USB 3.2 GEN 1 PORTS MISCELLANEOUS 1 X ADDRESSABLE GEN 2 HEADER(S) 1 X AURA RGB HEADER(S) 1 X THERMAL SENSOR HEADER 2 X USB TYPE-C® CONNECTORS TO INSTALL ROG FPS-II CARD ROG FPS-II CARD 2 X SATA 6GB/S PORTS 1 X CPU OVER VOLTAGE JUMPER 1 X THERMAL SENSOR HEADER 1 X FRONT PANEL HEADER 1 X ALTERNATIVE PCIE MODE SWITCH 2 X USB 2.0 HEADER(S) SUPPORT(S) ADDITIONAL 3 USB 2.0 PORTS SPECIAL FEATURES EXTREME ENGINE DIGI+ - 5K BLACK METALLIC CAPACITORS ASUS Q-DESIGN - M.2 Q-LATCH - Q-DIMM - Q-SLOT ASUS THERMAL SOLUTION - M.2 HEATSINK BACKPLATE - M.2 HEATSINK - VRM HEATSINK DESIGN ASUS EZ DIY - CLEAR CMOS BUTTON - CPU SOCKET LEVER PROTECTOR - PROCOOL II - PRE-MOUNTED I/O SHIELD - SAFESLOT - SAFEDIMM AURA SYNC - AURA RGB HEADER(S) - ADDRESSABLE GEN 2 HEADER(S) ROG STRIX HIVE 1 X USB TYPE-C® CONNECTS TO MOTHERBOARD 1 X USB 3.2 GEN 2 PORT(S) (1 X USB TYPE-C®) 1 X USB 2.0 PORT(S) (1 X TYPE-A WITH BIOS FLASHBACK™) 1 X HEADPHONE JACK WITH MIC IN 1 X MIC IN JACK WITH OPTICAL S/PDIF OUT 1 X AI OC BUTTON 1 X FLEXKEY BUTTON 1 X BIOS FLASHBACK™ BUTTON 1 X VOLUME CONTROL KNOB WITH MUTE BUTTON Q-LED (CPU [RED], DRAM [YELLOW], VGA [WHITE], BOOT DEVICE [YELLOW GREEN]) SOFTWARE FEATURES ROG EXCLUSIVE SOFTWARE - GAMEFIRST VI - ROG CPU-Z - SONIC STUDIO III + SONIC STUDIO VIRTUAL MIXER + SONIC SUITE COMPANION - SONIC RADAR III - DTS® SOUND UNBOUND ASUS EXCLUSIVE SOFTWARE ARMOURY CRATE - AIDA64 EXTREME (60 DAYS FREE TRIAL) - AURA CREATOR - AURA SYNC - FAN XPERT 4 (WITH AI COOLING II) - POWER SAVING - TWO-WAY AI NOISE CANCELLATION AI SUITE 3 - EASY OPTIMIZATION WITH AI OVERCLOCKING - TPU - DIGI+ VRM - TURBO APP - PC CLEANER MYASUS NORTON 360 FOR GAMERS WINRAR UEFI BIOS AI OVERCLOCKING GUIDE ASUS EZ DIY - ASUS CRASHFREE BIOS 3 - ASUS EZ FLASH 3 - ASUS UEFI BIOS EZ MODE FLEXKEY MEMTEST86 BIOS 256 MB FLASH ROM, UEFI AMI BIOS MANAGEABILITY WOL BY PME, PXE ACCESSORIES CABLES 2 X SATA 6GB/S CABLES 1 X ROG USB2.0 SPLITTER CABLE 1 X PANEL CABLE ROG FPS-II CARD 1 X ROG FPS-II CARD ROG STRIX HIVE 1 X ROG STRIX HIVE 1 X USB TYPE-C® POWER CONNECTION CABLE ADDITIONAL COOLING KIT 1 X THERMAL PAD FOR M.2 MISCELLANEOUS 1 X ASUS WI-FI MOVING ANTENNAS 1 X CABLE TIES PACK 1 X RUBBER PACKAGE(S) FOR M.2 1 X Q-LATCH PACKAGE(S) FOR M.2 1 X ROG KEY CHAIN 1 X ROG STRIX STICKERS 1 X ROG STRIX THANK YOU CARD INSTALLATION MEDIA 1 X USER GUIDE OPERATING SYSTEM WINDOWS® 11, WINDOWS® 10 64-BIT FORM FACTOR MINI-ITX FORM FACTOR 6.7 INCH X 6.7 INCH( 17CM X 17CM) |
