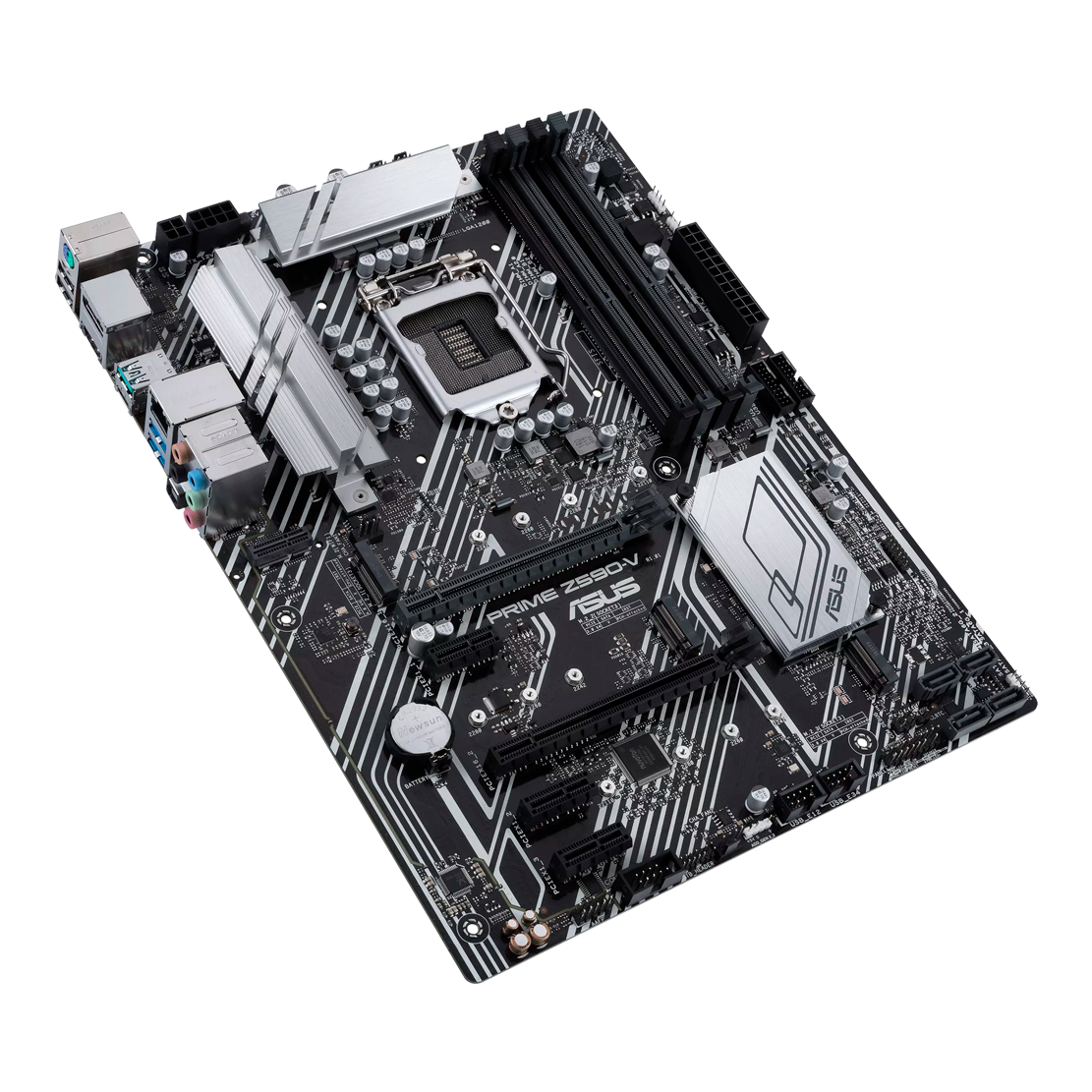

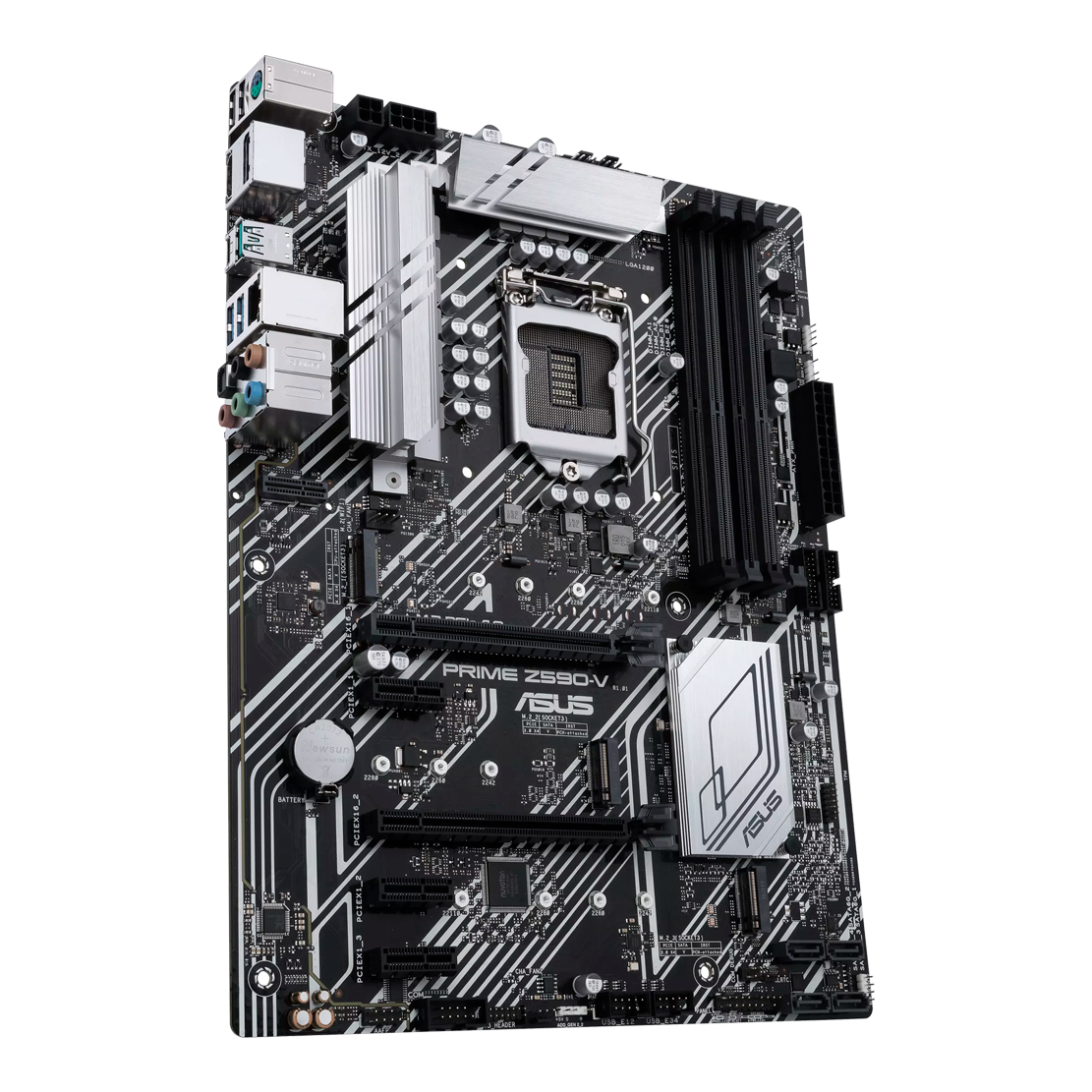

| ASUS PRIME Z590-V-SI |
MODEL PRIME Z590-V CPU SUPPORTS INTEL® 14 NM CPU SUPPORTS INTEL® TURBO BOOST TECHNOLOGY 2.0 AND INTEL® TURBO BOOST MAX TECHNOLOGY 3.0** * REFER TO WWW.ASUS.COM FOR CPU SUPPORT LIST. ** INTEL® TURBO BOOST MAX TECHNOLOGY 3.0 SUPPORT DEPENDS ON THE CPU TYPES. MEMORY DDR4 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHZ NON-ECC, UN-BUFFERED MEMORY* DUAL CHANNEL MEMORY ARCHITECTURE SUPPORTS INTEL® EXTREME MEMORY PROFILE (XMP) OPTIMEM II * 10TH GEN INTEL® CORE™ I7/I9 PROCESSORS SUPPORT 2933/2800/2666/2400/2133 NATIVELY, OTHERS WILL RUN AT THE MAXIMUM TRANSFER RATE OF DDR4 2666MHZ. * 11TH GEN INTEL® PROCESSORS SUPPORT 3200/2933/2800/2666/2400/2133 NATIVELY. * REFER TO WWW.ASUS.COM FOR THE MEMORY QVL (QUALIFIED VENDORS LISTS), AND MEMORY FREQUENCY SUPPORT DEPENDS ON THE CPU TYPES. GRAPHICS * GRAPHICS SPECIFICATIONS MAY VARY BETWEEN CPU TYPES. ** INTEL® 11TH & 10TH GEN PROCESSORS SUPPORT DISPLAYPORT 1.4 WITH MAX. RESOLUTION OF 4096 X 2304 @60HZ. PLEASE REFER TO WWW.INTEL.COM FOR ANY UPDATES. *** ONLY INTEL® 11TH GEN PROCESSORS SUPPORT HDMI™ 2.0 WITH MAX. RESOLUTION OF 4K@60HZ, OTHERS WILL ONLY SUPPORT HDMI™ 1.4 WITH MAX. RESOLUTION OF 4K@30HZ. PLEASE REFER TO WWW.INTEL.COM FOR ANY UPDATES. EXPANSION SLOTS INTEL® 11TH & 10TH GEN PROCESSORS* 1 X PCIE 4.0/3.0 X16 SLOT - INTEL® 11TH GEN PROCESSORS SUPPORT PCIE 4.0 X16 OR X8/X8 OR X8/X4/X4 MODES - INTEL® 10TH GEN PROCESSORS SUPPORT PCIE 3.0 X16 OR X8/X8 OR X8/X4/X4 MODES INTEL® Z590 CHIPSET 1 X PCIE 3.0 X16 SLOT (SUPPORTS X4 MODE) 3 X PCIE 3.0 X1 SLOTS * SUPPORTS PCIE BANDWIDTH BIFURCATION FOR RAID ON CPU FUNCTION. STORAGE INTEL® 11TH GEN PROCESSORS M.2_1 SLOT (KEY M), TYPE 2242/2260/2280/22110 - ONLY INTEL® 11TH GEN PROCESSORS SUPPORT PCIE 4.0 X4 MODE, THIS SLOT WILL BE DISABLED FOR OTHER CPUS INTEL® Z590 CHIPSET M.2_2 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 3.0 X4 & SATA MODES)* M.2_3 SLOT (KEY M), TYPE 2242/2260/2280/22110 (SUPPORTS PCIE 3.0 X4 & SATA MODES) 4 X SATA 6GB/S PORTS RAID FUNCTION FOR PCIE MODE SSD IN INTEL® RAPID STORAGE TECHNOLOGY IS AVAILABLE WITH EITHER 1. INTEL® SSDS INSTALLED IN BOTH CPU-ATTACHED AND PCH-ATTACHED SLOTS, OR 2. ANY OTHER 3RD PARTY SSDS INSTALLED IN PCH-ATTACHED SLOTS. TO ENABLE INTEL® OPTANE™ MEMORY (HYBRID STORAGE DEVICE), IT MUST BE INSTALLED IN PCH-ATTACHED SLOTS WITH INTEL® RAPID STORAGE TECHNOLOGY. * WHEN A DEVICE IN SATA MODE IS INSTALLED ON THE M.2_2 SLOT, SATA6G_2 PORT CANNOT BE USED. USB 1 X USB 3.2 GEN 2 PORT (1 X USB TYPE-C®) 1 X USB 3.2 GEN 2 PORT (1 X TYPE-A) 2 X USB 3.2 GEN 1 PORTS (2 X TYPE-A) 2 X USB 2.0 PORTS (2 X TYPE-A) 2 X USB 3.2 GEN 1 HEADERS SUPPORT ADDITIONAL 4 USB 3.2 GEN 1 PORTS 2 X USB 2.0 HEADERS SUPPORT ADDITIONAL 4 USB 2.0 PORTS* * USB_E1 PORT, USB_E2 PORT, USB_E3 PORT AND USB_E4 PORT SHARE THE BANDWIDTH. AUDIO REALTEK ALC897 7.1 SURROUND SOUND HIGH DEFINITION AUDIO CODEC - SUPPORTS: JACK-DETECTION, MULTI-STREAMING, FRONT PANEL JACK-RETASKING - SUPPORTS UP TO 24-BIT/192 KHZ PLAYBACK AUDIO FEATURES - AUDIO SHIELDING - REAR OPTICAL S/PDIF OUT PORT - PREMIUM JAPANESE AUDIO CAPACITORS - DEDICATED AUDIO PCB LAYERS BACK PANEL I/O PORTS 1 X USB 3.2 GEN 2 PORT (1 X USB TYPE-C®) 1 X USB 3.2 GEN 2 PORT (1 X TYPE-A) 2 X USB 3.2 GEN 1 PORTS (2 X TYPE-A) 2 X USB 2.0 PORTS (2 X TYPE-A) 1 X DISPLAYPORT 1 X HDMI™ PORT 1 X V-M.2 SLOT (KEY E) 1 X INTEL® I219-V 1GB ETHERNET 5 X AUDIO JACKS 1 X OPTICAL S/PDIF OUT PORT 1 X PS/2 KEYBOARD/MOUSE COMBO PORT INTERNAL I/O CONNECTORS FAN AND COOLING RELATED 1 X 4-PIN CPU FAN HEADER 1 X 4-PIN AIO PUMP HEADER 2 X 4-PIN CHASSIS FAN HEADERS POWER RELATED 1 X 24-PIN MAIN POWER CONNECTOR 1 X 8-PIN +12V POWER CONNECTOR 1 X 4-PIN +12V POWER CONNECTOR STORAGE RELATED 3 X M.2 SLOTS (KEY M) 4 X SATA 6GB/S PORTS USB 2 X USB 3.2 GEN 1 HEADERS SUPPORT ADDITIONAL 4 USB 3.2 GEN 1 PORTS 2 X USB 2.0 HEADERS SUPPORT ADDITIONAL 4 USB 2.0 PORTS MISCELLANEOUS 2 X AURA ADDRESSABLE GEN 2 HEADERS 2 X AURA RGB HEADERS 1 X CLEAR CMOS HEADER 1 X COM PORT HEADER 1 X FRONT PANEL AUDIO HEADER (AAFP) 1 X SPI TPM HEADER (14-1PIN) 1 X 20-5PIN SYSTEM PANEL HEADER 1 X THUNDERBOLT™ HEADER SPECIAL FEATURES ASUS 5X PROTECTION III - DIGI+ VRM (- DIGITAL POWER DESIGN WITH DRMOS) - LANGUARD - OVERVOLTAGE PROTECTION - SAFESLOT CORE - STAINLESS-STEEL BACK I/O ASUS Q-DESIGN - Q-DIMM - Q-SLOT ASUS THERMAL SOLUTION - VRM HEATSINK DESIGN ASUS EZ DIY - PROCOOL AURA SYNC - AURA RGB HEADERS - ADDRESSABLE GEN 2 RGB HEADERS SOFTWARE FEATURES ASUS EXCLUSIVE SOFTWARE ARMOURY CRATE - AURA SYNC AI SUITE 3 - PERFORMANCE AND POWER SAVING UTILITY TURBOV EVO EPU DIGI+ VRM FAN XPERT 4 - EZ UPDATE ASUS CPU-Z AI CHARGER DAEMON TOOLS NORTON ANTI-VIRUS SOFTWARE (FREE TRIAL VERSION) WINRAR UEFI BIOS ASUS EZ DIY - ASUS CRASHFREE BIOS 3 - ASUS EZ FLASH 3 - ASUS UEFI BIOS EZ MODE BIOS 192 (128+64) MB FLASH ROM, UEFI AMI BIOS MANAGEABILITY WOL BY PME, PXE ACCESSORIES CABLES 2 X SATA 6GB/S CABLES MISCELLANEOUS 1 X I/O SHIELD 2 X M.2 SSD SCREW PACKAGES INSTALLATION MEDIA 1 X SUPPORT DVD DOCUMENTATION 1 X USER MANUAL |
