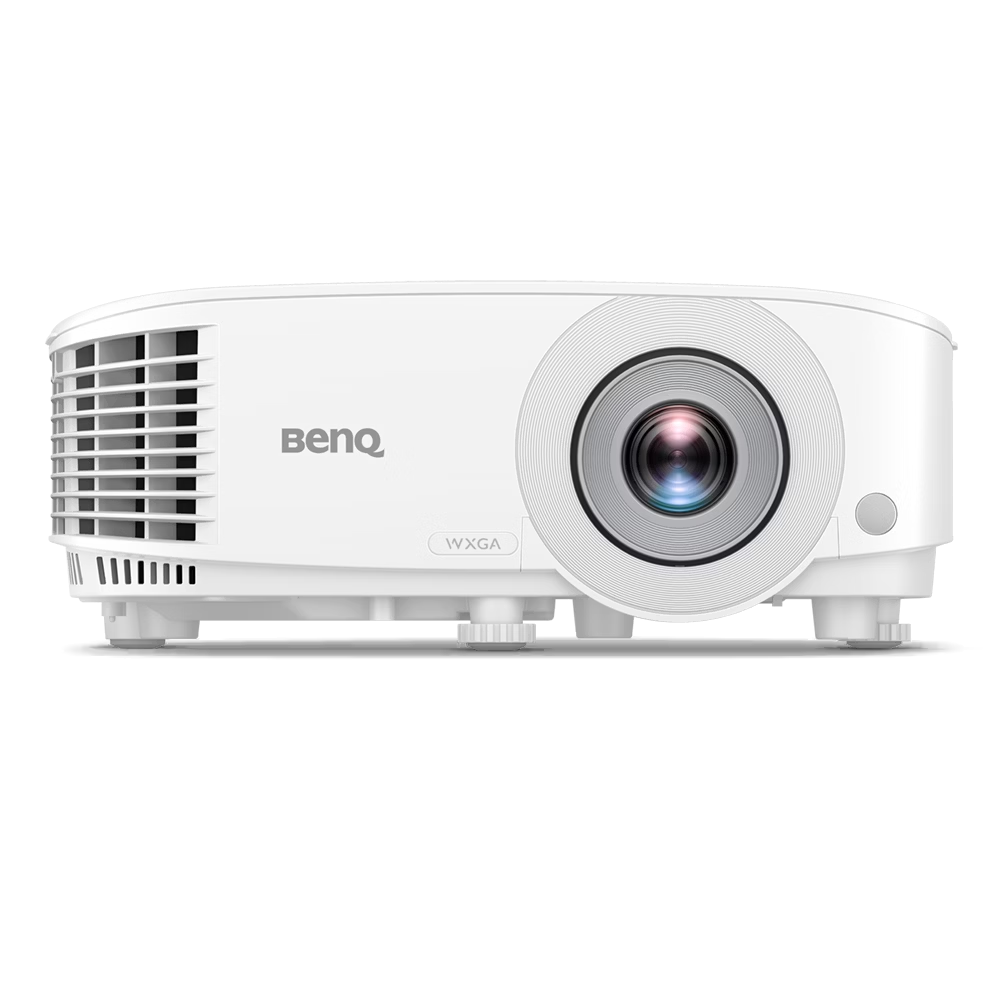

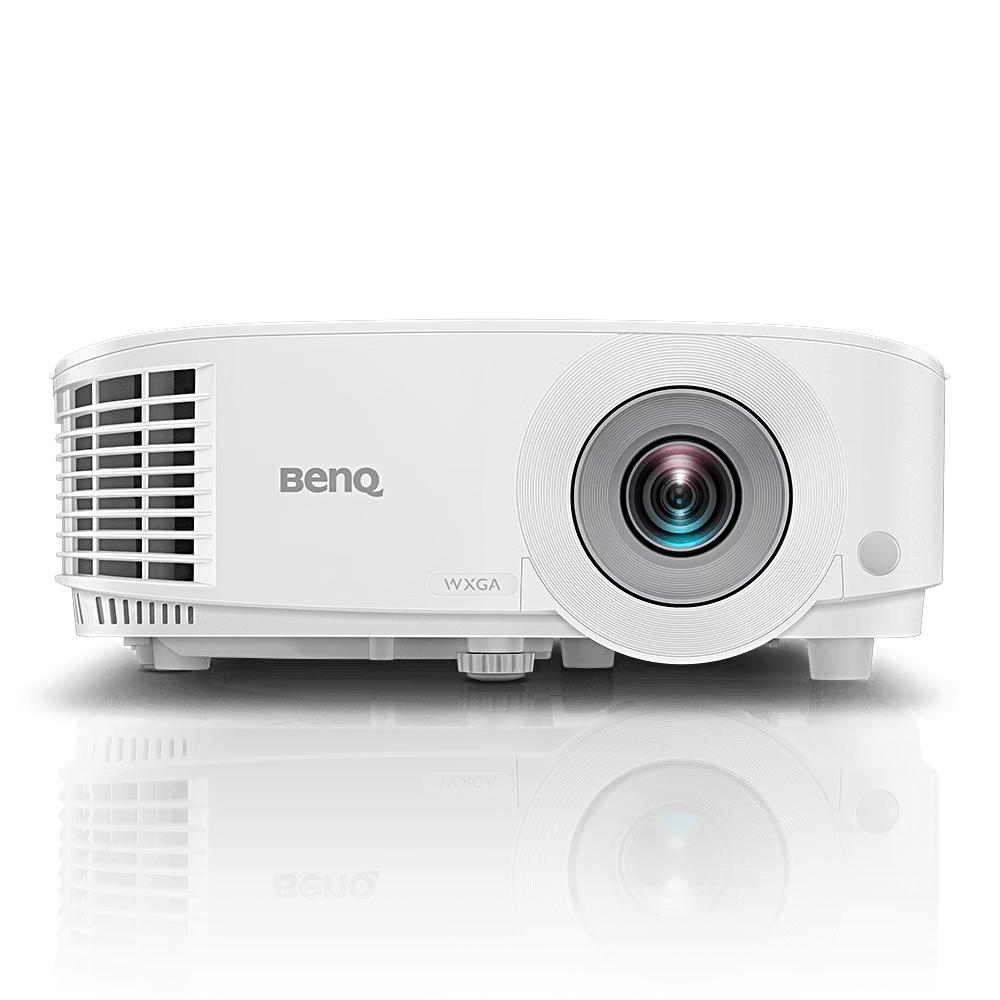

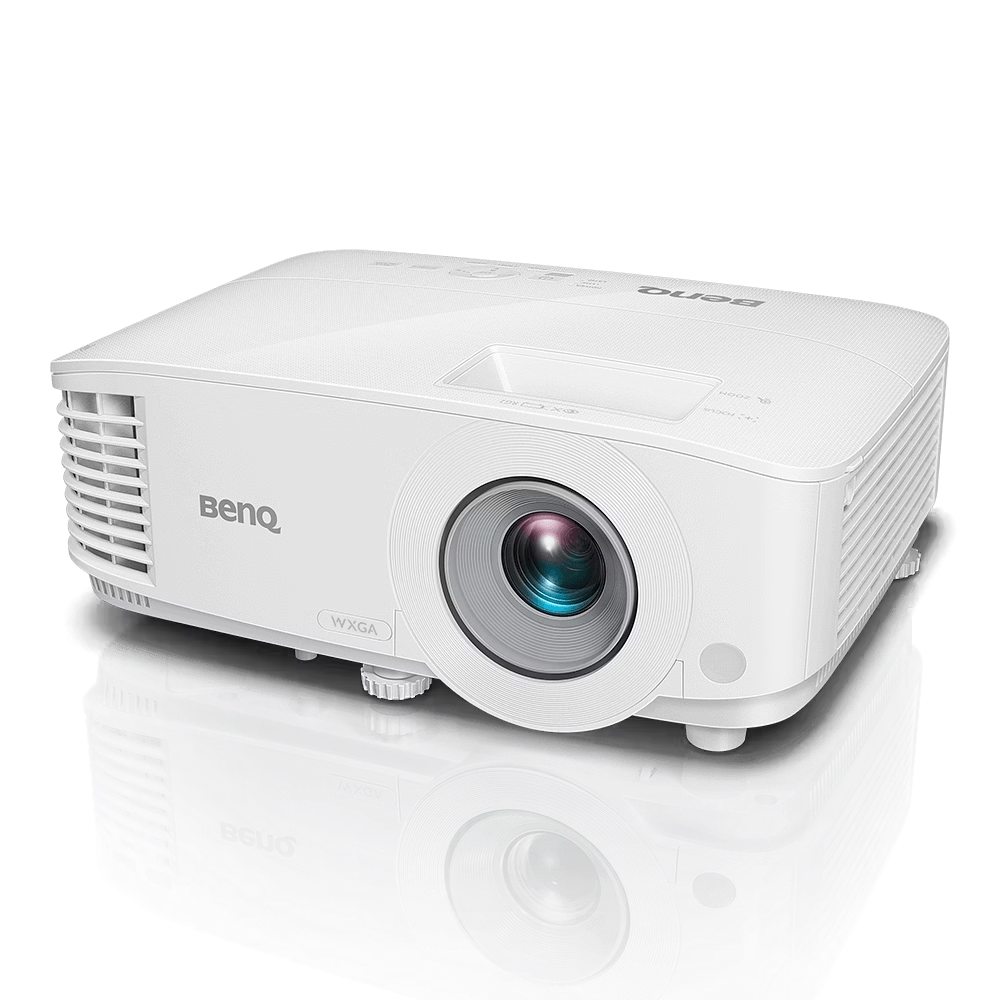

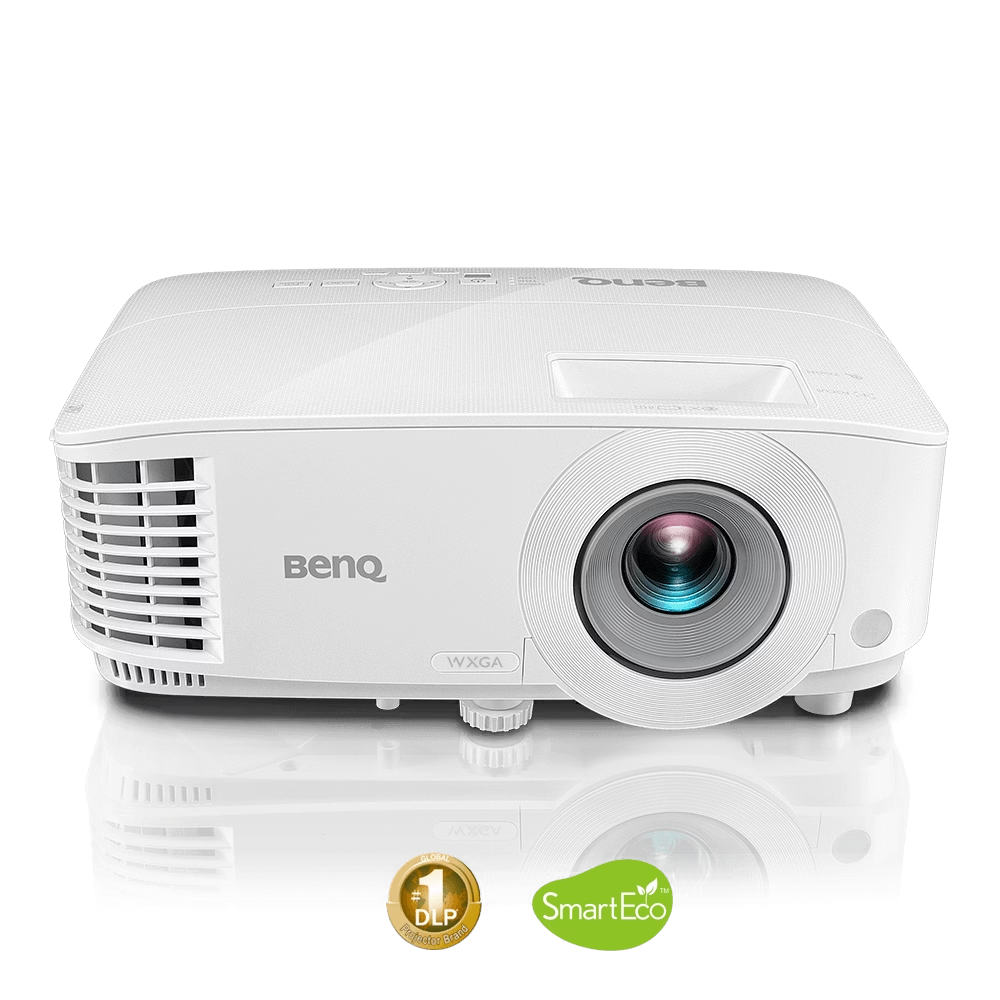

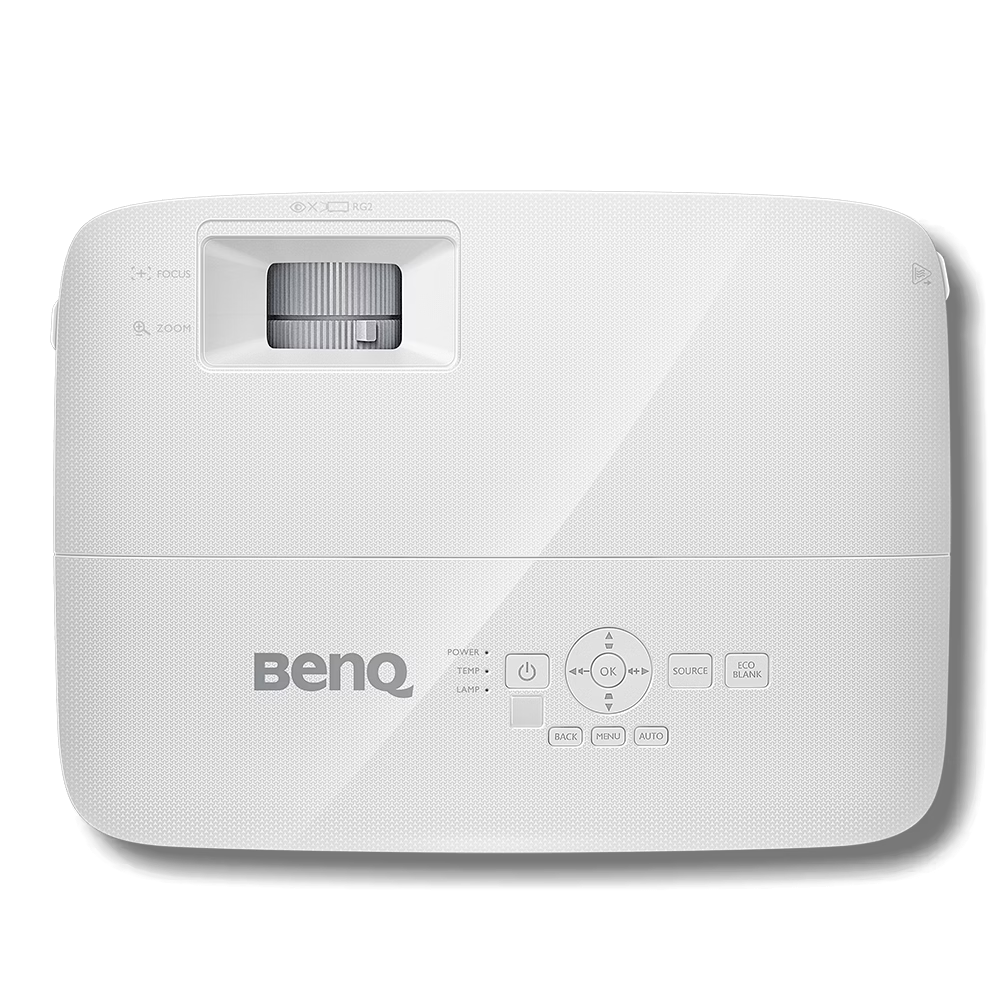

BenQ MW550 WXGA

Availability: In stock 0 SAMPLE
229900 AMD

Brand:

Only Pre Order

Call Now
CATEGORIES: PROJECTORS
All Specifications

Display

Brightness (ANSI lumens)
3600
Resolution
WXGA (1280x800)
Native Aspect Ratio
16:10
Contrast Ratio (FOFO)
20,000:1
Display Color
30-bit (1.07 billion colors)
Light Source
Lamp
Light Source Life
a. Normal 5000 hrs, c. SmartEco 10000 hrs, d. LampSave 15000 hrs, b. ECO 10000 hrs

Optical

Throw Ratio
1.55~1.7
Zoom Ratio
1.1x
Lens
F/# = 2.56 ~ 2.68, f = 22 ~ 24.1 mm
Projection Offset (Full-Height)
100%
Keystone Adjustment
1D, Vertical ± 30 degrees


Picture Modes
3D, Bright, Infographic, Presentation, sRGB, User 1, User 2

Compatibility

Resolution Support
VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Horizontal Frequency
15K~102KHz

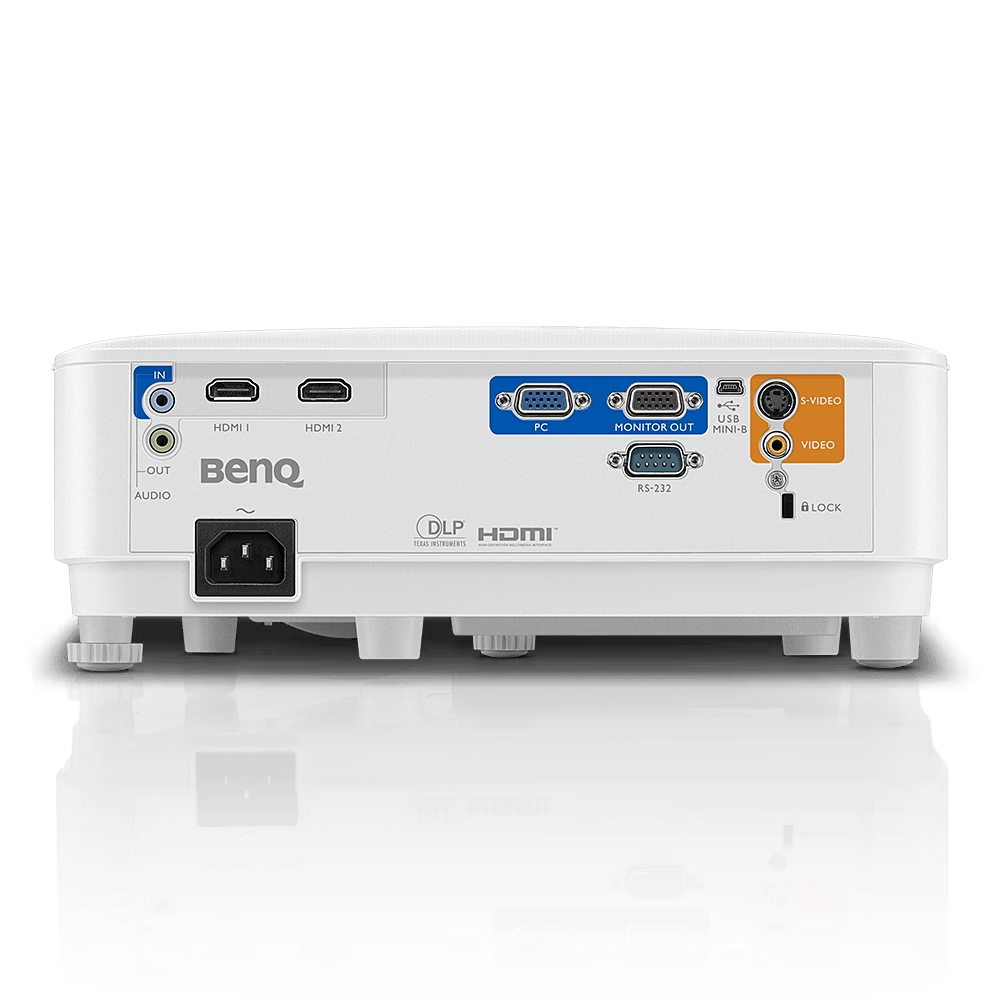

I/O Interface

PC in (D-sub 15pin)
(x1)
Monitor out (D-sub 15pin)
(x1)
Composite Video in (RCA)
(x1)
S-Video in (Mini DIN 4pin)
(x1)
HDMI in
(x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4)
USB Type Mini B
(x1)
RS232 in (DB-9pin)
(x1)

Audio

Speaker
2W
Audio in (3.5mm Mini Jack)
(x1)
Audio out (3.5mm Mini Jack)
(x1)

Environment

Operating Temperature
0~40℃
Power Supply
AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)
~270W
Acoustic Noise (Typ./Eco.)(dB)
33/29

Accessories

Remote Control w/ Battery
RCX014
Power Cord (by region)
x1 (1.8M)
VGA(D-sub 15pin) Cable
1 (1.5m)
User Manual CD
1 (24L)
3D Glasses
DGD5, (Optional)
Quick Start Guide
(x1) 18L
Warranty Card (by region)
Yes
Universal Ceiling Mount
CM00G3, (Optional)

Dimension & Weight

Dimensions (WxHxD) (mm)
296 x120 x221
Net Weight (kg)
2.3

Projection System

Projection System
DLP
