INFO

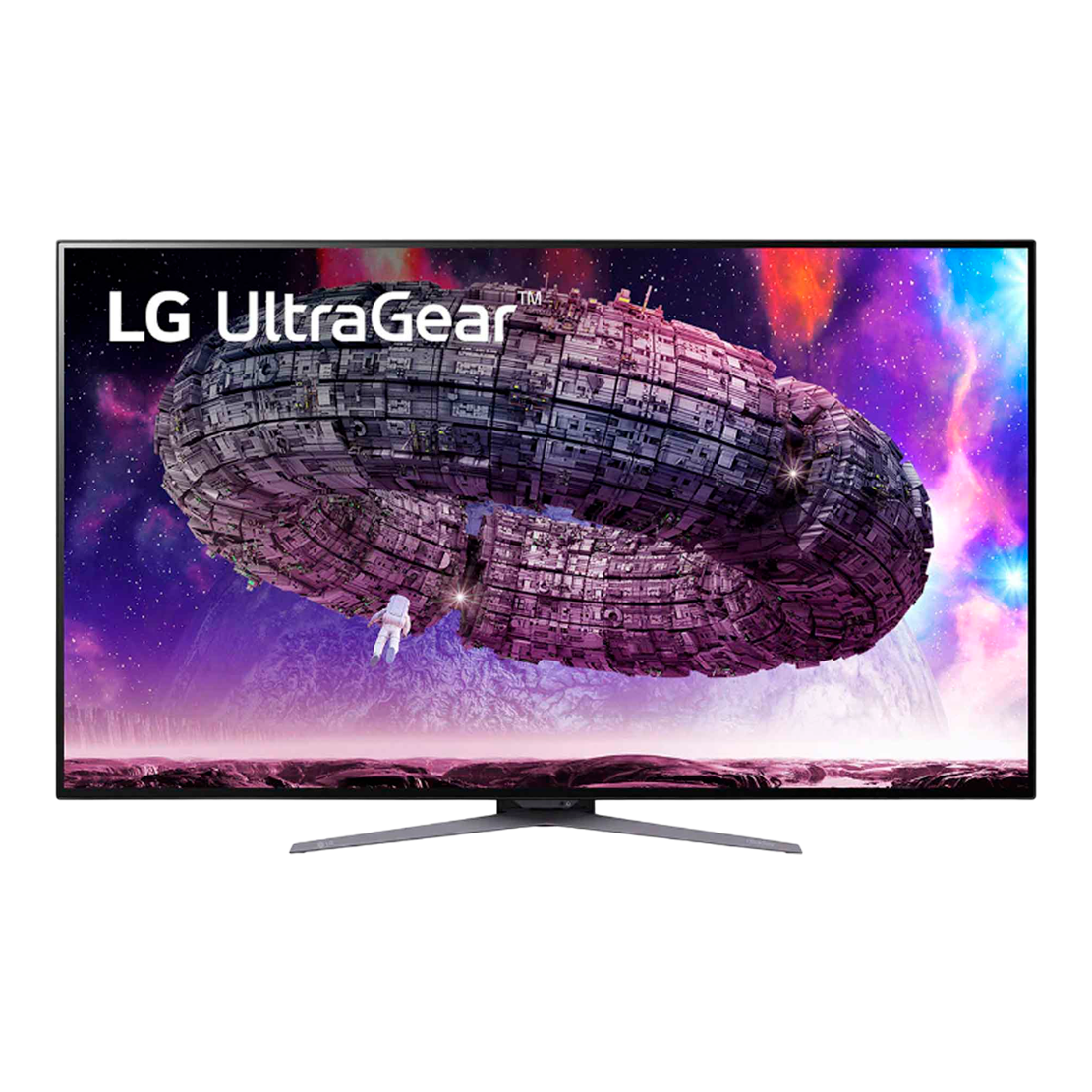

- Product name
- UltraGear
- Year
- Y22
DISPLAY
- Size (Inch)
- 47.53
- Size (cm)
- 120.7193 cm
- Resolution
- 3840 x 2160
- Panel Type
- OLED
- Aspect Ratio
- 16:9
- Pixel Pitch
- 0.274 x 0.274 mm
- Brightness (Min.)
- 264 cd/m² (@SDR 25% APL)
- Brightness (Typ.)
- 330 cd/m² (@SDR 25% APL)
- Color Gamut (Typ.)
- DCI-P3 99% (CIE1976)
- Color Depth (Number of Colors)
- 1.07B
- Contrast Ratio (Min.)
- 1,200,000 : 1 @25% APL
- Contrast Ratio (Typ.)
- 1500000:1
- Response Time
- 0.1ms (GtG)
- Refresh Rate (Max.) [Hz]
- 138 (O/C)
- Viewing Angle (CR≥10)
- 178º(R/L), 178º(U/D)
FEATURES
- HDR 10
- Yes
- HDR Effect
- Yes
- Color Calibrated in Factory
- Yes
- HW Calibration
- HW Calibration Ready
- Reader Mode
- Yes
- NVIDIA G-Sync™
- G-SYNC Compatible
- AMD FreeSync™
- FreeSync Premium
- VRR
- Yes
- Black Stabilizer
- Black Stabilizer
- Dynamic Action Sync
- Yes
- Crosshair
- Yes
- FPS Counter
- Yes
- OverClocking
- Yes
- User Defined Key
- Yes
- RGB LED Lighting
- Hexagon Lighting
- Smart Energy Saving
- Yes
- Others (Feature)
- Hexagon Lighting, VESA DSC Tech. DTS HP:X (4-pole H/P Out)
SW APPLICATION
- LG Calibration Studio (True Color Pro)
- Yes
- OnScreen Control (LG Screen Manager)
- Yes
CONNECTIVITY
- HDMI
- Yes(3ea)
- DisplayPort
- Yes(1ea)
- DP Version
- 1.4
- USB Upstream Port
- Yes(1ea/ver3.0)
- USB Downstream Port
- Yes(2ea/ver3.0)
- SPDIF out (Optical Digital Audio Out)
- Yes
- Headphone out
- 4-pole (Sound+Mic)
SOUND
- Speaker
- 20W x 2
- DTS HP:X
- Yes
POWER
- Type
- Built-in Power
- AC Input
- 100~240V (50/60Hz)
- Power Consumption (Typ.)
- 175W
- Power Consumption (Max.)
- 253W
- Power Consumption (Sleep Mode)
- Less than 0.5W
- Power Consumption (DC Off)
- Less than 0.3W
MECHANICAL
- Wall Mountable
- 300 x 200 mm
DIMENSIONS/WEIGHT
- Dimension with Stand (W x H x D)
- 1070.6 x 659.7 x 184.8mm
- Dimension without Stand (W x H x D)
- 1070.6 x 623.9 x 46.6mm
- Dimension in Shiping (W x H x D)
- 1285 x 771 x 173mm
- Weight with Stand
- 16.8kg
- Weight without Stand
- 15.5kg
- Weight in Shipping
- 19.3kg
- Pallet Stuffing (20ft/40ft/40ft HC)
- 100/220/324
ACCESSORY
- HDMI
- Yes
- Display Port
- Yes
- USB A to B
- Yes
- Remote Controller
- Yes
- Others (Accessory)
- Back Door(Purple Gray), Cable Cover(Purple Gray), Screw(Black, M4 X L20), Battery(AAA x 2EA)
