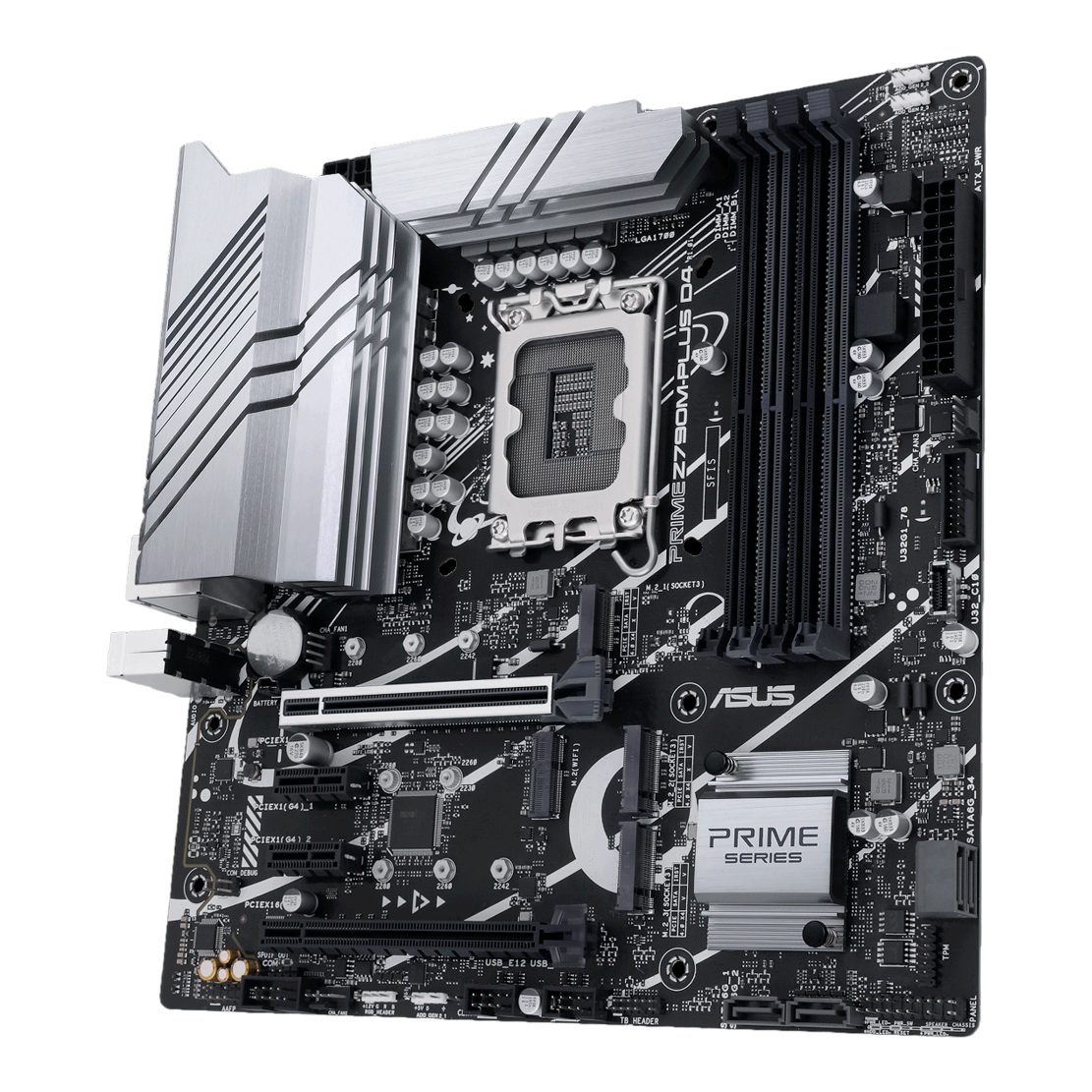

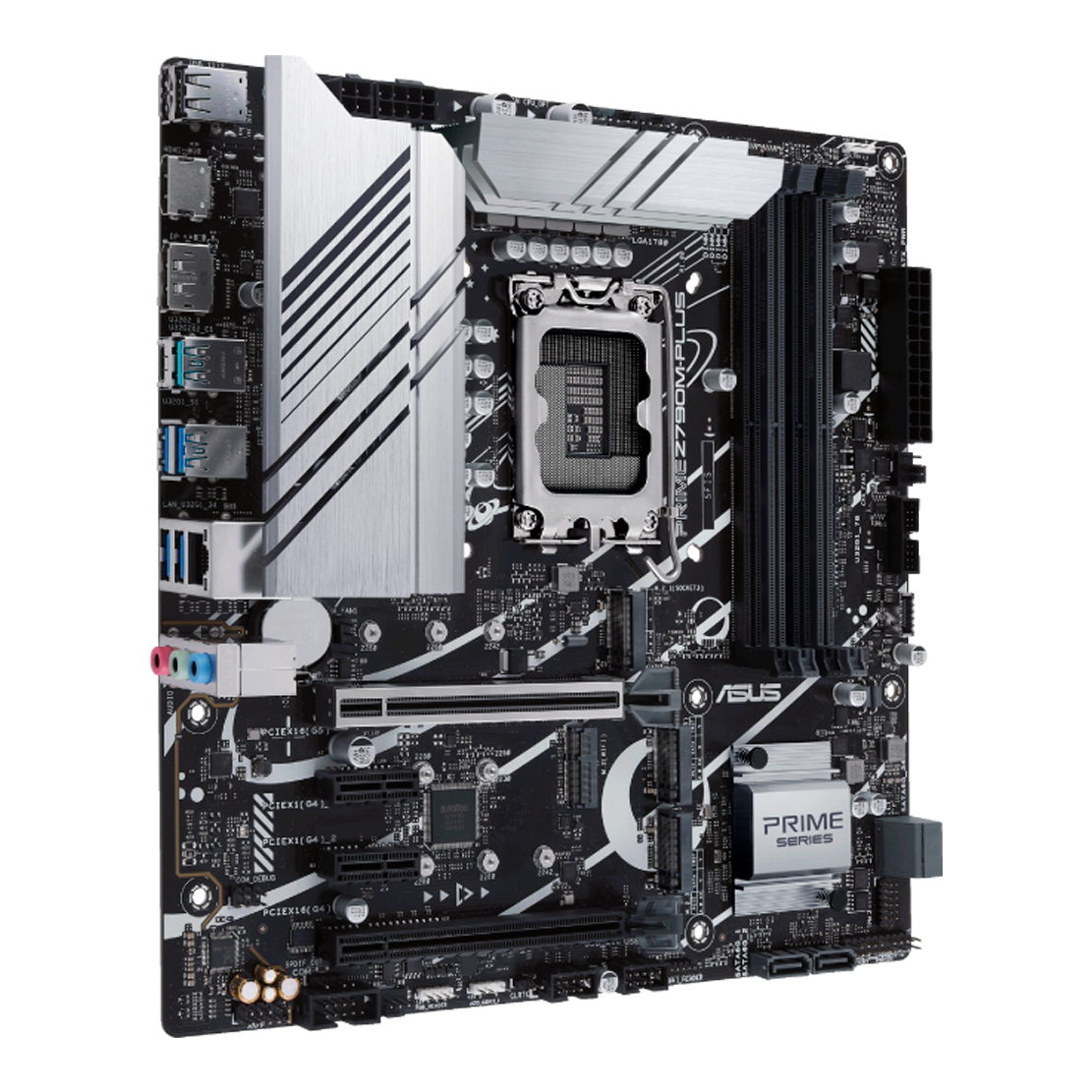

| ASUS PRIME Z790M-PLUS |
MODEL PRIME Z790M-PLUS CPU INTEL® SOCKET LGA1700 FOR 13TH GEN INTEL® CORE™ & 12TH GEN INTEL® CORE™, PENTIUM® GOLD AND CELERON® PROCESSORS* SUPPORTS INTEL® TURBO BOOST TECHNOLOGY 2.0 AND INTEL® TURBO BOOST MAX TECHNOLOGY 3.0** * REFER TO WWW.ASUS.COM FOR CPU SUPPORT LIST. ** INTEL® TURBO BOOST MAX TECHNOLOGY 3.0 SUPPORT DEPENDS ON THE CPU TYPES. CHIPSET INTEL® Z790 CHIPSET MEMORY 4 X DIMM, MAX. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 NON-ECC, UN-BUFFERED MEMORY* DUAL CHANNEL MEMORY ARCHITECTURE SUPPORTS INTEL® EXTREME MEMORY PROFILE (XMP) OPTIMEM II * SUPPORTED MEMORY TYPES, DATA RATE (SPEED), AND NUMBER OF DRAM MODULES VARY DEPENDING ON THE CPU AND MEMORY CONFIGURATION, FOR MORE INFORMATION PLEASE REFER TO CPU/MEMORY SUPPORT LIST UNDER THE SUPPORT TAB OF PRODUCT INFORMATION SITE OR VISIT HTTPS://WWW.ASUS.COM/SUPPORT/. * NON-ECC, UN-BUFFERED DDR5 MEMORY SUPPORTS ON-DIE ECC FUNCTION. 4 X DIMM, MAX. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 NON-ECC, UN-BUFFERED MEMORY* DUAL CHANNEL MEMORY ARCHITECTURE SUPPORTS INTEL® EXTREME MEMORY PROFILE (XMP) OPTIMEM II * SUPPORTED MEMORY TYPES, DATA RATE (SPEED), AND NUMBER OF DRAM MODULES VARY DEPENDING ON THE CPU AND MEMORY CONFIGURATION, FOR MORE INFORMATION PLEASE REFER TO CPU/MEMORY SUPPORT LIST UNDER THE SUPPORT TAB OF PRODUCT INFORMATION SITE OR VISIT HTTPS://WWW.ASUS.COM/SUPPORT/. * NON-ECC, UN-BUFFERED DDR5 MEMORY SUPPORTS ON-DIE ECC FUNCTION. GRAPHICS 1 X DISPLAYPORT** 1 X HDMI® PORT*** *GRAPHICS SPECIFICATIONS MAY VARY BETWEEN CPU TYPES. PLEASE REFER TO WWW.INTEL.COM FOR ANY UPDATES. **SUPPORTS MAX. 4K@60HZ AS SPECIFIED IN DISPLAYPORT 1.4. ***SUPPORTS 4K@60HZ AS SPECIFIED IN HDMI 2.1. EXPANSION SLOTS INTEL® 13TH & 12TH GEN PROCESSORS* 1 X PCIE 5.0 X16 SLOT INTEL® Z790 CHIPSET 1 X PCIE 4.0 X16 SLOT (SUPPORTS X4 MODE) 2 X PCIE 4.0 X1 SLOTS * PLEASE CHECK THE PCIE BIFURCATION TABLE ON THE SUPPORT SITE (HTTPS://WWW.ASUS.COM/SUPPORT/FAQ/1037507/). - TO ENSURE COMPATIBILITY OF THE DEVICE INSTALLED, PLEASE REFER TO HTTPS://WWW.ASUS.COM/SUPPORT/ FOR THE LIST OF SUPPORTED PERIPHERALS. STORAGE TOTAL SUPPORTS 3 X M.2 SLOTS AND 4 X SATA 6GB/S PORTS* INTEL® 13TH & 12TH GEN PROCESSORS M.2_1 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 4.0 X4 MODE) INTEL® Z790 CHIPSET M.2_2 SLOT (KEY M), TYPE 2260/2280 (SUPPORTS PCIE 4.0 X4 MODE) M.2_3 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 4.0 X4 & SATA MODES) 4 X SATA 6GB/S PORTS * INTEL® RAPID STORAGE TECHNOLOGY SUPPORTS PCIE RAID 0/1/5/10, SATA RAID 0/1/5/10. ETHERNET 1 X INTEL® 1GB ETHERNET ASUS LANGUARD WIRELESS & BLUETOOTH M.2 SLOT ONLY (KEY E, CNVI & PCIE)* *WI-FI MODULE IS SOLD SEPARATELY. USB REAR USB (TOTAL 8 PORTS) 1 X USB 3.2 GEN 2X2 PORT (1 X USB TYPE-C®) 1 X USB 3.2 GEN 2 PORT (1 X TYPE-A) 4 X USB 3.2 GEN 1 PORTS (4 X TYPE-A) 2 X USB 2.0 PORTS (2 X TYPE-A) FRONT USB (TOTAL 7 PORTS) 1 X USB 3.2 GEN 1 CONNECTOR (SUPPORTS USB TYPE-C®) 1 X USB 3.2 GEN 1 HEADER SUPPORTS 2 ADDITIONAL USB 3.2 GEN 1 PORTS 2 X USB 2.0 HEADERS SUPPORT 4 ADDITIONAL USB 2.0 PORTS* * USB_E1 PORT, USB_E2 PORT, USB_E3 PORT AND USB_E4 PORT SHARE THE BANDWIDTH. AUDIO REALTEK 7.1 SURROUND SOUND HIGH DEFINITION AUDIO CODEC* - SUPPORTS: JACK-DETECTION, MULTI-STREAMING, FRONT PANEL JACK-RETASKING - SUPPORTS UP TO 24-BIT/192 KHZ PLAYBACK AUDIO FEATURES - AUDIO SHIELDING - PREMIUM AUDIO CAPACITORS - DEDICATED AUDIO PCB LAYERS * A CHASSIS WITH AN HD AUDIO MODULE IN THE FRONT PANEL IS REQUIRED TO SUPPORT 7.1 SURROUND SOUND AUDIO OUTPUT. BACK PANEL I/O PORTS 1 X USB 3.2 GEN 2X2 PORT (1 X USB TYPE-C®) 1 X USB 3.2 GEN 2 PORT (1 X TYPE-A) 4 X USB 3.2 GEN 1 PORTS (4 X TYPE-A) 2 X USB 2.0 PORTS (2 X TYPE-A) 1 X DISPLAYPORT 1 X HDMI® PORT 1 X INTEL® 1GB ETHERNET PORT 3 X AUDIO JACKS INTERNAL I/O CONNECTORS FAN AND COOLING RELATED 1 X 4-PIN CPU FAN HEADER 1 X 4-PIN CPU OPT FAN HEADER 1 X 4-PIN AIO PUMP HEADER 3 X 4-PIN CHASSIS FAN HEADERS POWER RELATED 1 X 24-PIN MAIN POWER CONNECTOR 1 X 8-PIN + 12V POWER CONNECTOR 1 X 4-PIN + 12V POWER CONNECTOR STORAGE RELATED 3 X M.2 SLOTS (KEY M) 4 X SATA 6GB/S PORTS USB 1 X USB 3.2 GEN 1 CONNECTOR (SUPPORTS USB TYPE-C®) 1 X USB 3.2 GEN 1 HEADER SUPPORTS 2 ADDITIONAL USB 3.2 GEN 1 PORTS 2 X USB 2.0 HEADERS SUPPORT 4 ADDITIONAL USB 2.0 PORTS MISCELLANEOUS 3 X ADDRESSABLE GEN 2 HEADERS 1 X AURA RGB HEADER 1 X CLEAR CMOS HEADER 1 X COM PORT HEADER 1 X FRONT PANEL AUDIO HEADER (AAFP) 1 X M.2 SLOT (KEY E) 1 X S/PDIF OUT HEADER 1 X SPI TPM HEADER (14-1PIN) 1 X 20-3 PIN SYSTEM PANEL HEADER WITH CHASSIS INTRUDE FUNCTION 1 X THUNDERBOLT™ (USB4®) HEADER SPECIAL FEATURES ASUS 5X PROTECTION III - DIGI+ VRM (- DIGITAL POWER DESIGN WITH DRMOS) - LANGUARD - OVERVOLTAGE PROTECTION - SAFESLOT CORE+ - STAINLESS-STEEL BACK I/O ASUS Q-DESIGN - Q-DIMM - Q-LED CORE - Q-SLOT ASUS THERMAL SOLUTION - VRM HEATSINK DESIGN ASUS EZ DIY - PROCOOL AURA SYNC - AURA RGB HEADER - ADDRESSABLE GEN 2 HEADERS SOFTWARE FEATURES ASUS EXCLUSIVE SOFTWARE ARMOURY CRATE - AURA SYNC - FAN XPERT 4 (WITH AI COOLING II) - POWER SAVING AI SUITE 3 - TURBOV EVO - DIGI+ VRM - PC CLEANER ASUS CPU-Z NORTON 360 DELUXE (60 DAYS FREE TRIAL) WINRAR UEFI BIOS ASUS EZ DIY - ASUS CRASHFREE BIOS 3 - ASUS EZ FLASH 3 - ASUS UEFI BIOS EZ MODE BIOS 192 (128+64) MB FLASH ROM, UEFI AMI BIOS MANAGEABILITY WOL BY PME, PXE ACCESSORIES CABLES 2 X SATA 6GB/S CABLES MISCELLANEOUS 1 X I/O SHIELD 2 X SCREW PACKAGES FOR M.2 SSD DOCUMENTATION 1 X USER GUIDE OPERATING SYSTEM WINDOWS® 11, WINDOWS® 10 64-BIT FORM FACTOR MATX FORM FACTOR 9.6 INCH X 9.6 INCH (24.4 CM X 24.4 CM) |
