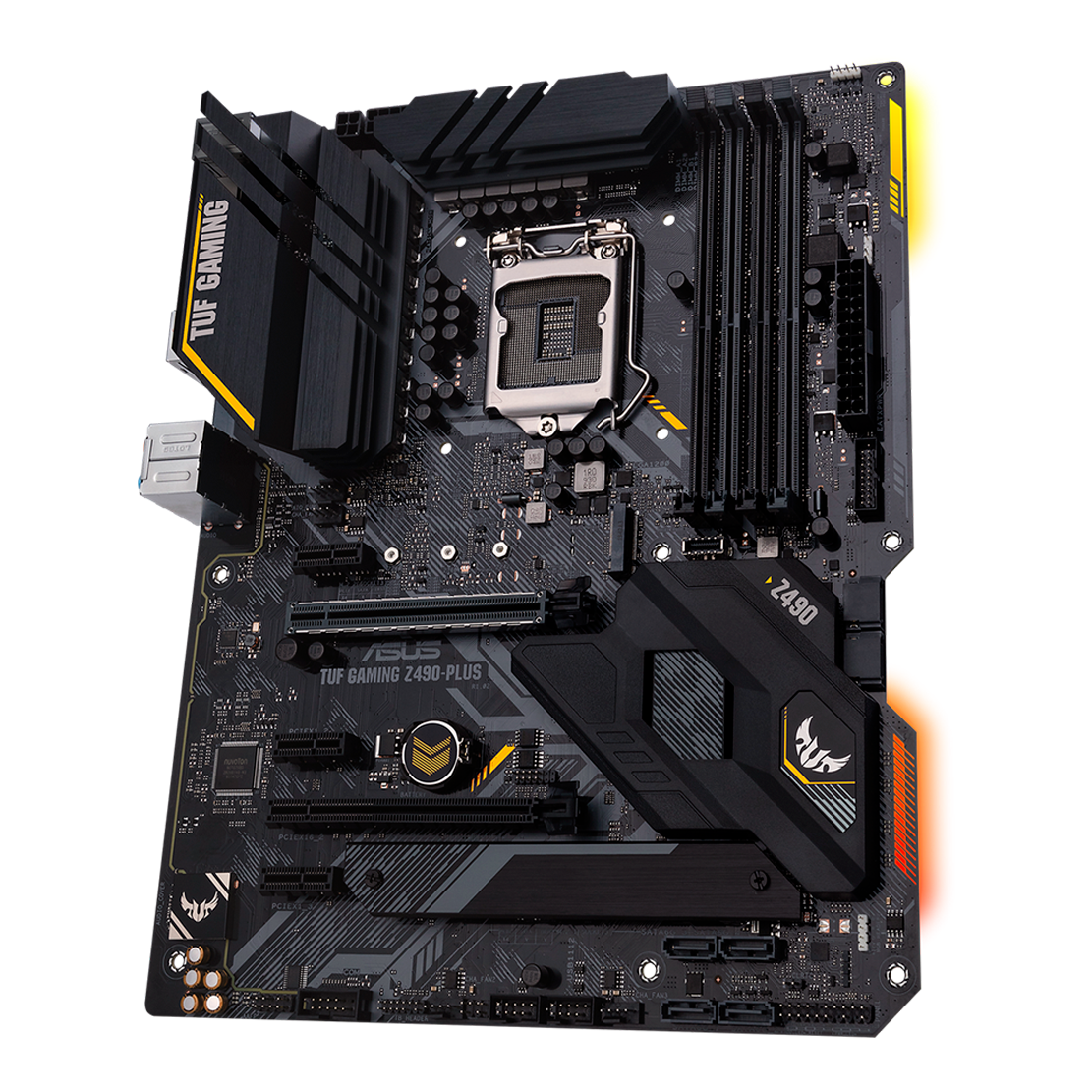

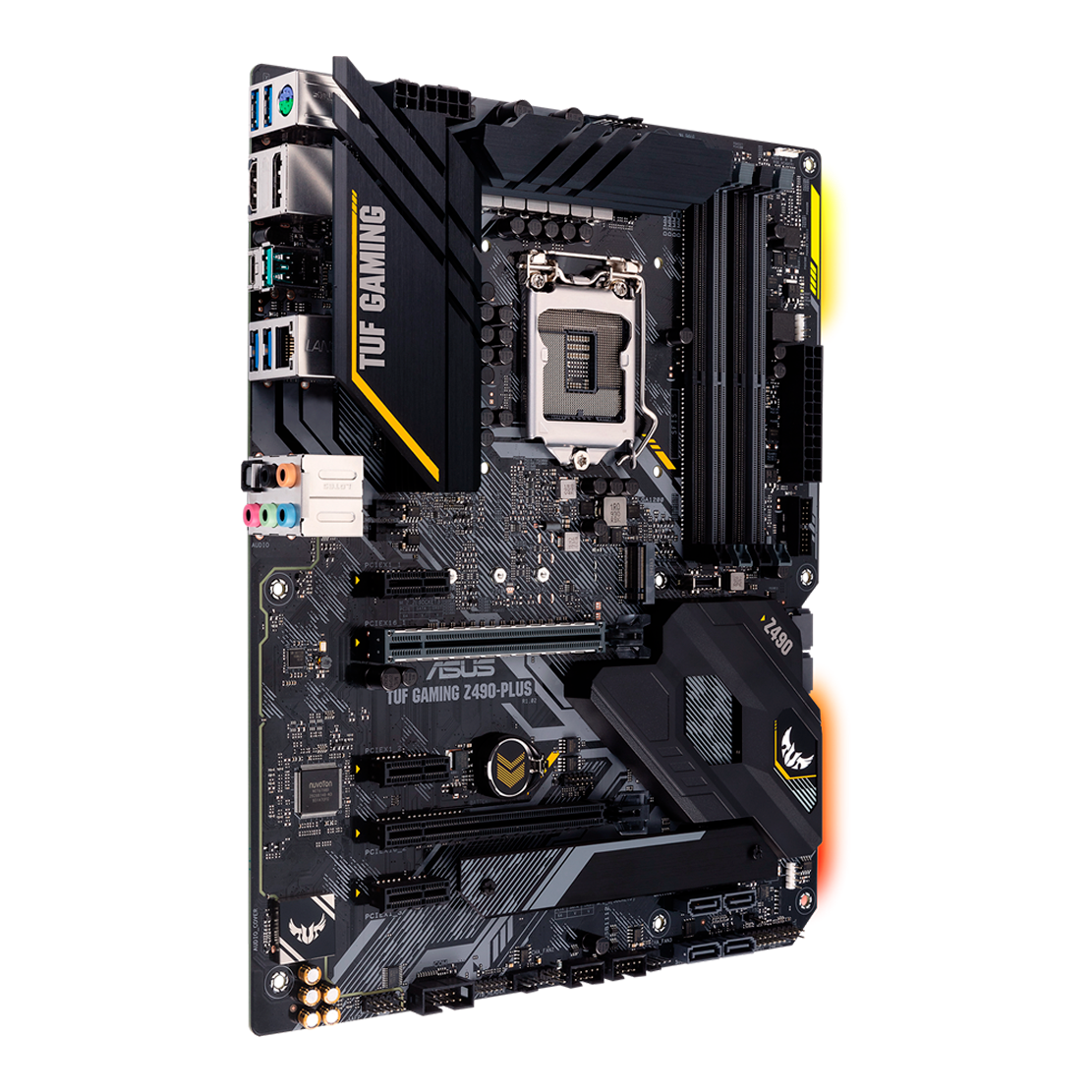

| ASUS TUF GAMING Z490-PLUS |
MODEL TUF GAMING Z490-PLUS CPU BUILD IN INTEL® SOCKET 1200 FOR 10TH GEN INTEL® CORE™, PENTIUM® GOLD AND CELERON® PROCESSORS SUPPORTS INTEL® 14 NM CPU SUPPORTS INTEL® TURBO BOOST TECHNOLOGY 2.0 AND INTEL® TURBO BOOST MAX TECHNOLOGY 3.0** * REFER TO WWW.ASUS.COM FOR CPU SUPPORT LIST **INTEL® TURBO BOOST MAX TECHNOLOGY 3.0 SUPPORT DEPENDS ON THE CPU TYPES. CHIPSET BUILD IN INTEL® Z490 MEMORY 4 X DIMM, MAX. 128GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHZ NON-ECC, UN-BUFFERED MEMORY DUAL CHANNEL MEMORY ARCHITECTURE SUPPORTS INTEL® EXTREME MEMORY PROFILE (XMP) OPTIMEM II * 10TH GEN INTEL® CORE™I9/I7 CPUS SUPPORT 2933/2800/2666/2400/2133 NATIVELY, REFER TO WWW.ASUS.COM FOR THE MEMORY QVL (QUALIFIED VENDORS LISTS). * REFER TO WWW.ASUS.COM FOR THE MEMORY QVL (QUALIFIED VENDORS LISTS). GRAPHIC INTEGRATED GRAPHICS PROCESSOR 1 X DISPLAYPORT 1.4 ** 1 X HDMI™ PORT *GRAPHICS SPECIFICATIONS MAY VARY BETWEEN CPU TYPES. **SUPPORT DISPLAYPORT 1.4 WITH MAX. RESOLUTION OF 4096 X 2304 @60HZ. PLEASE REFER TO WWW.INTEL.COM FOR ANY UPDATE. MULTI-GPU SUPPORT SUPPORTS AMD 2-WAY CROSSFIREX TECHNOLOGY EXPANSION SLOTS INTEL® 10TH GEN PROCESSORS 1 X PCIE 3.0 X16 (X16 MODE) INTEL® Z490 CHIPSET 1 X PCIE 3.0 X16 (X4 MODE) 3 X PCIE X1 STORAGE TOTAL SUPPORTS 2 X M.2 SLOTS AND 6 X SATA 6GB/S PORTS INTEL® Z490 CHIPSET : 1 X M.2_1 SOCKET 3, WITH M KEY, TYPE 2242/2260/2280/22110 STORAGE DEVICES SUPPORT (SATA & PCIE 3.0 X 4 MODE)*1 1 X M.2_2 SOCKET 3, WITH M KEY, TYPE 2242/2260/2280 STORAGE DEVICES SUPPORT (SATA & PCIE 3.0 X 4 MODE)*2 6 X SATA 6GB/S PORT(S) SUPPORT RAID 0, 1, 5, 10 INTEL® RAPID STORAGE TECHNOLOGY SUPPORTS INTEL® OPTANE™ MEMORY READY LAN INTEL® I219-V 1GB ETHERNET TUF LANGUARD AUDIO REALTEK® ALC S1200A 7.1 SURROUND SOUND HIGH DEFINITION AUDIO CODEC - SUPPORTS : JACK-DETECTION, MULTI-STREAMING, FRONT PANEL JACK-RETASKING, UP TO 24-BIT/192KHZ PLAYBACK AUDIO FEATURE : - OPTICAL S/PDIF OUT PORT(S) AT BACK PANEL - AUDIO COVER - AUDIO SHIELDING - DEDICATED AUDIO PCB LAYERS - PREMIUM JAPANESE AUDIO CAPACITORS * DUE TO LIMITATIONS IN HDA BANDWIDTH, 32-BIT/192KHZ IS NOT SUPPORTED FOR 8-CHANNEL AUDIO. USB PORTS REAR USB PORT ( TOTAL 6 ) 2 X USB 3.2 GEN 2 PORT(S)(1 + TYPE-A +1 + USB TYPE-C®) 4 X USB 3.2 GEN 1 PORT(S)(4 X TYPE-A) FRONT USB PORT ( TOTAL 7 ) 1 X USB 3.2 GEN 2 FRONT PANEL CONNECTOR PORT(S)(1 X USB TYPE-C®) 1 X USB 3.2 GEN 1 PORT(S)(2 X TYPE-A) 2 X USB 2.0 PORT(S)(4 X TYPE-A) SOFTWARE FEATURES ASUS EXCLUSIVE SOFTWARE ARMOURY CRATE - AURA SYNC AI SUITE 3: - PERFORMANCE AND POWER SAVING UTILITY TURBO V EVO EPU DIGI+ VRM FAN XPERT 4 SYSTEM INFORMATION - EZ UPDATE AI CHARGER ASUS TURBO LAN DTS CUSTOM FOR GAMING HEADSETS NORTON ANTI-VIRUS SOFTWARE (FREE TRIAL FOR 90 DAYS) WINRAR UEFI BIOS ASUS EZ DIY - ASUS CRASHFREE BIOS 3 - ASUS EZ FLASH 3 - ASUS UEFI BIOS EZ MODE ASUS SPECIAL FEATURES ASUS TUF PROTECTION - ASUS DIGI+ VRM (- DIGITAL POWER DESIGN WITH DR. MOS) - ASUS ENHANCED DRAM OVERCURRENT PROTECTION - ASUS ESD GUARDS - TUF LANGUARD - ASUS OVERVOLTAGE PROTECTION - ASUS SAFESLOT - ASUS STAINLESS-STEEL BACK I/O ASUS Q-DESIGN - ASUS Q-DIMM - ASUS Q-LED (CPU [RED], DRAM [YELLOW], VGA [WHITE], BOOT DEVICE [YELLOW GREEN]) - ASUS Q-SLOT ASUS THERMAL SOLUTION - STYLISH HEATSINK ASUS EZ DIY - PROCOOL AURA SYNC - STANDARD RGB HEADERS - ADDRESSABLE GEN 2 RGB HEADER BACK I/O PORTS 1 X PS/2 KEYBOARD/MOUSE COMBO PORT(S) 1 X DISPLAYPORT 1 X HDMI 1 X LAN (RJ45) PORT(S) 2 X USB 3.2 GEN 2 (1 X TYPE-A+1 X USB TYPE-C®) 4 X USB 3.2 GEN 1 (BLUE) TYPE-A 1 X OPTICAL S/PDIF OUT 5 X AUDIO JACK(S) INTERNAL I/O PORTS 1 X CPU FAN CONNECTOR(S) 1 X CPU OPT FAN CONNECTOR(S) 3 X CHASSIS FAN CONNECTOR(S) 1 X AIO_PUMP CONNECTOR 2 X AURA RGB STRIP HEADERS 1 X ADDRESSABLE GEN 2 HEADER(S) 1 X USB 3.2 GEN2 CONNECTOR SUPPORT ADDITIONAL 1 USB PORTS(20-PIN, TYPE-C) 1 X USB 3.2 GEN 1(UP TO 5GBPS) CONNECTOR(S) SUPPORT(S) ADDITIONAL 2 USB 3.2 GEN 1 PORT(S) 2 X USB 2.0 CONNECTOR(S) SUPPORT(S) ADDITIONAL 4 USB 2.0 PORT(S) 2 X M.2 SOCKET 3 6 X SATA 6GB/S CONNECTOR(S) 1 X THUNDERBOLT HEADER(S) 1 X 24-PIN EATX POWER CONNECTOR(S) 1 X 8-PIN ATX 12V POWER CONNECTOR(S) 1 X 4-PIN ATX 12V POWER CONNECTOR(S) 1 X FRONT PANEL AUDIO CONNECTOR(S) (AAFP) 1 X SYSTEM PANEL(S) (CHASSIS INTRUSION HEADER IS INBUILT) 1 X CLEAR CMOS JUMPER(S) 1 X COM PORT HEADER ACCESSORIES USER´S MANUAL 1 X ASUS FAN HOLDER I/O SHIELD 2 X SATA 6GB/S CABLE(S) 1 X M.2 SCREW PACKAGE 1 X SUPPORTING DVD 1 X TUF GAMING STICKER 1 X TUF CERTIFICATION CARD(S) BIOS 192 (128+64) MB FLASH ROM, UEFI AMI BIOS MANAGEABILITY WOL BY PME, PXE OPERATING SYSTEM WINDOWS® 10 64-BIT FORM FACTOR ATX FORM FACTOR 12 INCH X 9.6 INCH ( 30.5 CM X 24.4 CM ) NOTE *1 M.2_1 SHARES BANDWIDTH WITH SATA6G_2. WHEN M.2_1 RUNS SATA MODE, SATA6G_2 WILL BE DISABLED. *2 M.2_2 SHARES BANDWIDTH WITH SATA6G_56. WHEN M.2_2 IS OCCUPIED, SATA6G_56 WILL BE DISABLED. |
