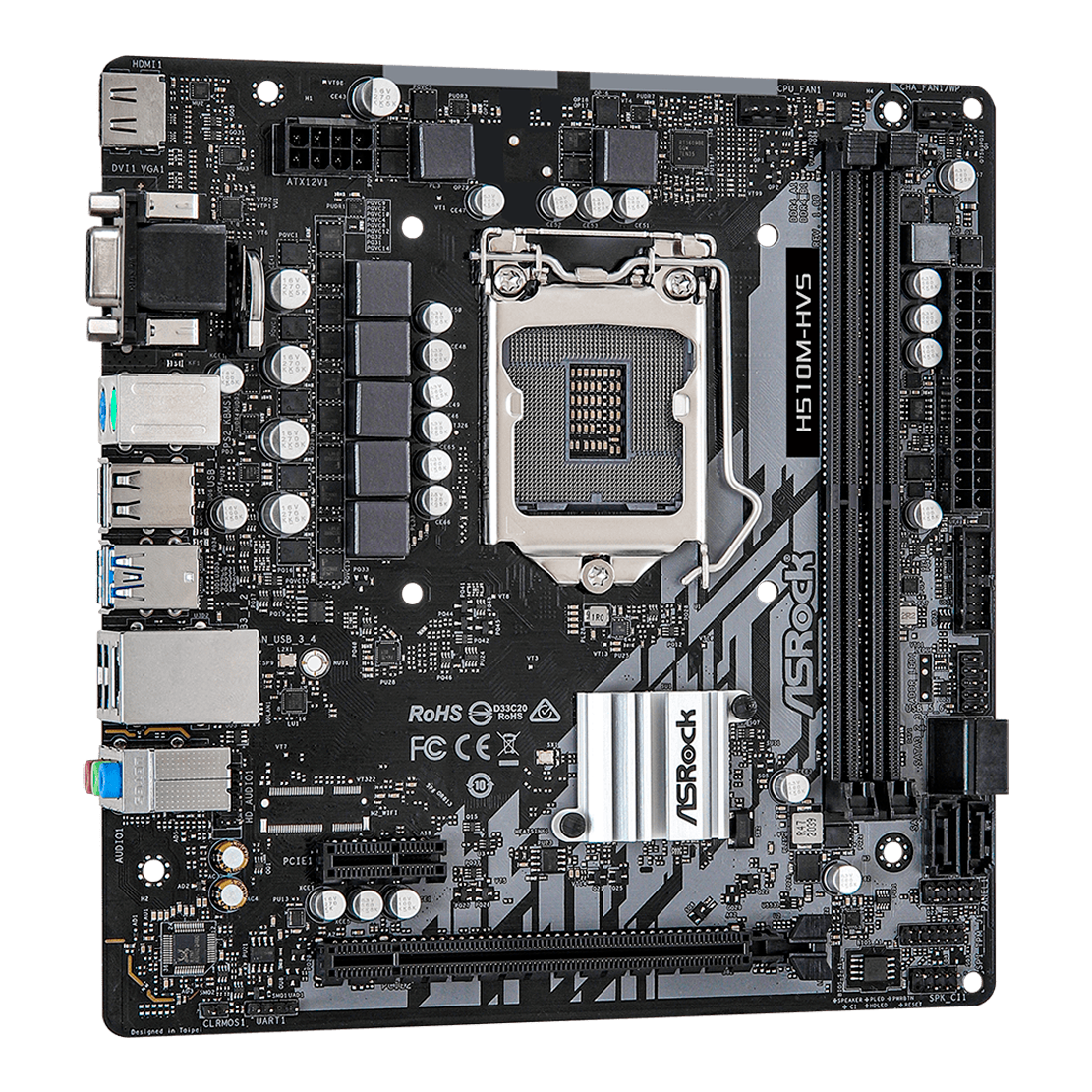

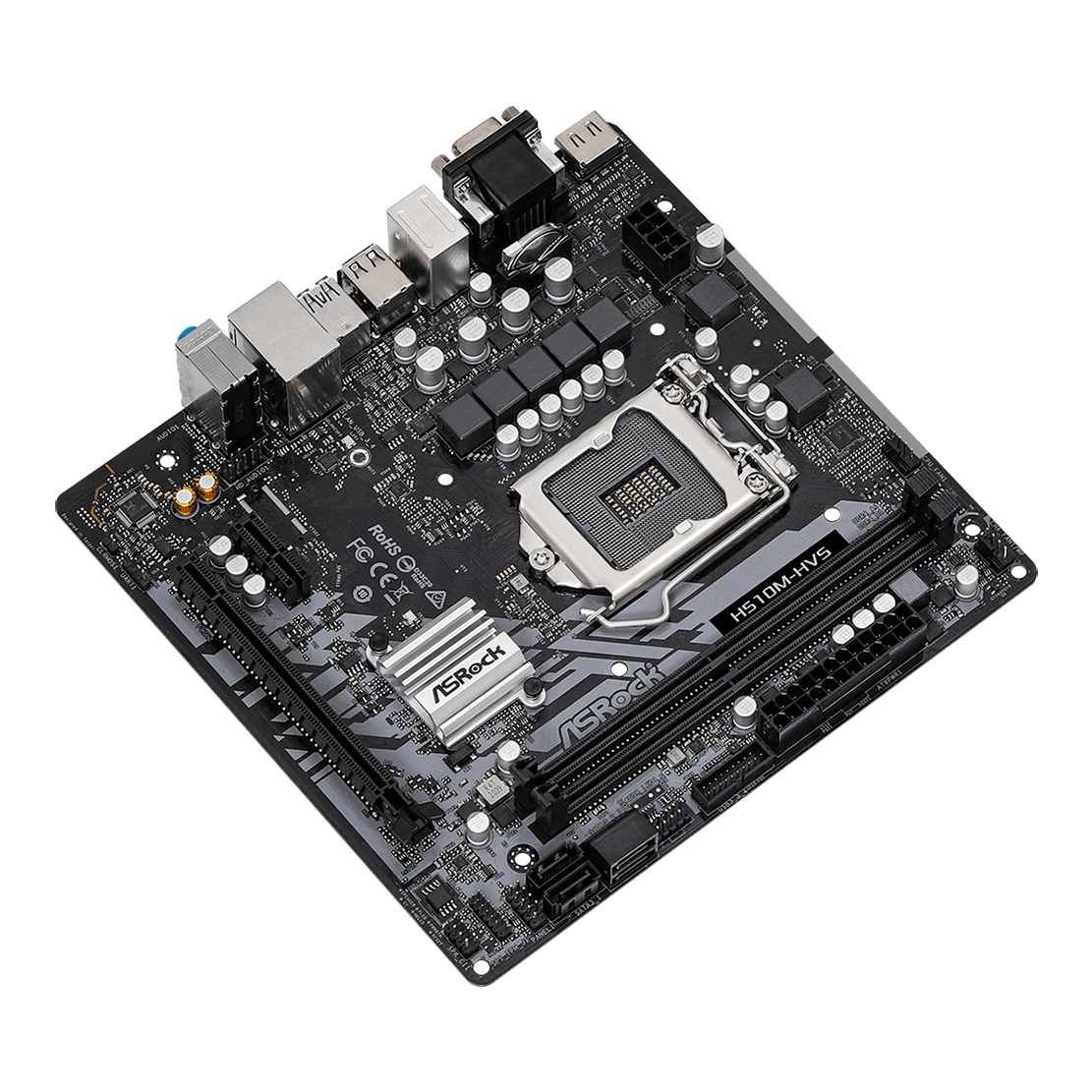

| ASROCK H510M-HVS |
UNIQUE FEATURE ASROCK SUPER ALLOY - PREMIUM 50A POWER CHOKE - SAPPHIRE BLACK PCB - HIGH DENSITY GLASS FABRIC PCB ASROCK FULL SPIKE PROTECTION (FOR ALL USB, AUDIO, LAN PORTS) ASROCK LIVE UPDATE & APP SHOP CPU - SUPPORTS 10TH GEN INTEL® CORE™ PROCESSORS AND 11TH GEN INTEL® CORE™ PROCESSORS (LGA1200) - 5 POWER PHASE DESIGN - SUPPORTS INTEL® TURBO BOOST MAX 3.0 TECHNOLOGY CHIPSET - INTEL® H510 MEMORY - DUAL CHANNEL DDR4 MEMORY TECHNOLOGY - 2 X DDR4 DIMM SLOTS - SUPPORTS DDR4 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 NON-ECC, UN-BUFFERED MEMORY - SUPPORTS ECC UDIMM MEMORY MODULES (OPERATE IN NON-ECC MODE) - MAX. CAPACITY OF SYSTEM MEMORY: 64GB** - SUPPORTS INTEL® EXTREME MEMORY PROFILE (XMP) 2.0 *11TH GEN INTEL® CORE™ (I9/I7/I5) SUPPORT DDR4 3200 NATIVELY; CORE™ (I3), PENTIUM® AND CELERON® SUPPORT DDR4 2666 NATIVELY. 10TH GEN INTEL® CORE™ (I9/I7) SUPPORT DDR4 2933 NATIVELY; CORE™ (I5/I3), PENTIUM® AND CELERON® SUPPORT DDR4 2666 NATIVELY. **DUE TO THE OPERATING SYSTEM LIMITATION, THE ACTUAL MEMORY SIZE MAY BE LESS THAN 4GB FOR THE RESERVATION FOR SYSTEM USAGE UNDER WINDOWS® 32-BIT OS. FOR WINDOWS® 64-BIT OS WITH 64-BIT CPU, THERE IS NO SUCH LIMITATION. BIOS - 128MB AMI UEFI LEGAL BIOS WITH MULTILINGUAL GUI SUPPORT - ACPI 6.0 COMPLIANT WAKE UP EVENTS - SMBIOS 2.7 SUPPORT - CPU CORE/CACHE, CPU GT, VCCSA, DRAM, VCCIO, CPU STANDBY, VCCIN AUX VOLTAGE MULTI-ADJUSTMENT GRAPHICS - 11TH GEN INTEL® CORE™ PROCESSORS SUPPORT INTEL® XE GRAPHICS ARCHITECTURE (GEN 12). 10TH GEN INTEL® CORE™ PROCESSORS SUPPORT GEN 9 GRAPHICS - DUAL GRAPHICS OUTPUT: SUPPORT HDMI AND D-SUB PORTS BY INDEPENDENT DISPLAY CONTROLLERS - SUPPORTS HDMI 2.0 WITH MAX. RESOLUTION UP TO 4K X 2K (4096X2160) @ 60HZ WITH 11TH GEN INTEL® CORE™ PROCESSORS - SUPPORTS HDMI 1.4 WITH MAX. RESOLUTION UP TO 4K X 2K (4096X2160) @ 30HZ WITH 10TH GEN INTEL® CORE™ PROCESSORS - SUPPORTS D-SUB WITH MAX. RESOLUTION UP TO 1920X1200 @ 60HZ - SUPPORTS AUTO LIP SYNC, DEEP COLOR (12BPC), XVYCC AND HBR (HIGH BIT RATE AUDIO) WITH HDMI 2.0 PORT (COMPLIANT HDMI MONITOR IS REQUIRED) - SUPPORTS HDCP 2.2 WITH HDMI PORT (HDCP 2.3 READY WITH 11TH GEN INTEL® CORE™ PROCESSORS) *INTEL® UHD GRAPHICS BUILT-IN VISUALS AND THE VGA OUTPUTS CAN BE SUPPORTED ONLY WITH PROCESSORS WHICH ARE GPU INTEGRATED. GRAPHICS SPECIFICATIONS MAY VARY BETWEEN CPU TYPES. AUDIO - 7.1 CH HD AUDIO (REALTEK ALC897 AUDIO CODEC) - SUPPORTS SURGE PROTECTION LAN - PCIE X1 GIGABIT LAN 10/100/1000 MB/S - 1 X REALTEK RTL8111H - SUPPORTS WAKE-ON-LAN - SUPPORTS LIGHTNING/ESD PROTECTION - SUPPORTS ENERGY EFFICIENT ETHERNET 802.3AZ - SUPPORTS PXE SLOTS 11TH GEN INTEL® CORE™ PROCESSORS - 1 X PCI EXPRESS 4.0 X16 SLOT* 10TH GEN INTEL® CORE™ PROCESSORS - 1 X PCI EXPRESS 3.0 X16 SLOT* - 1 X PCI EXPRESS 3.0 X1 SLOT *SUPPORTS NVME SSD AS BOOT DISKS STORAGE - 4 X SATA3 6.0 GB/S CONNECTORS, SUPPORT INTEL® RAPID STORAGE TECHNOLOGY 18, NCQ, AHCI AND HOT PLUG CONNECTOR - 1 X SPI TPM HEADER - 1 X CHASSIS INTRUSION AND SPEAKER HEADER - 1 X CPU FAN CONNECTOR (4-PIN)* - 1 X CHASSIS/WATER PUMP FAN CONNECTOR (4-PIN) (SMART FAN SPEED CONTROL)** - 1 X 24 PIN ATX POWER CONNECTOR - 1 X 8 PIN 12V POWER CONNECTOR - 1 X FRONT PANEL AUDIO CONNECTOR - 1 X USB 2.0 HEADER (SUPPORTS 2 USB 2.0 PORTS) (SUPPORTS ESD PROTECTION) - 1 X USB 3.2 GEN1 HEADER (SUPPORTS 2 USB 3.2 GEN1 PORTS) (SUPPORTS ESD PROTECTION) *THE CPU FAN CONNECTOR SUPPORTS THE CPU FAN OF MAXIMUM 1A (12W) FAN POWER. **THE CHASSIS/WATER PUMP FAN SUPPORTS THE WATER COOLER FAN OF MAXIMUM 2A (24W) FAN POWER. CHA_FAN1/WP CAN AUTO DETECT IF 3-PIN OR 4-PIN FAN IS IN USE. REAR PANEL I/O - 1 X PS/2 KEYBOARD PORT - 1 X PS/2 MOUSE PORT - 1 X D-SUB PORT - 1 X HDMI PORT - 2 X USB 3.2 GEN1 PORTS (SUPPORTS ESD PROTECTION) - 4 X USB 2.0 PORTS (SUPPORTS ESD PROTECTION) - 1 X RJ-45 LAN PORT WITH LED (ACT/LINK LED AND SPEED LED) - HD AUDIO JACKS: LINE IN / FRONT SPEAKER / MICROPHONE SOFTWARE AND UEFI SOFTWARE - ASROCK MOTHERBOARD UTILITY (A-TUNING) - ASROCK XFAST LAN UEFI - ASROCK EZ MODE - ASROCK FULL HD UEFI - ASROCK MY FAVORITES IN UEFI - ASROCK INSTANT FLASH - ASROCK INTERNET FLASH *THESE UTILITIES CAN BE DOWNLOADED FROM ASROCK LIVE UPDATE & APP SHOP. SUPPORT CD - DRIVERS, UTILITIES, ANTIVIRUS SOFTWARE (TRIAL VERSION), GOOGLE CHROME BROWSER AND TOOLBAR ACCESSORIES - QUICK INSTALLATION GUIDE, SUPPORT CD, I/O SHIELD - 2 X SATA DATA CABLES HARDWARE MONITOR - FAN TACHOMETER: CPU, CHASSIS/WATER PUMP FANS - QUIET FAN (AUTO ADJUST CHASSIS FAN SPEED BY CPU TEMPERATURE): CPU, CHASSIS/WATER PUMP FANS - FAN MULTI-SPEED CONTROL: CPU, CHASSIS/WATER PUMP FANS - CASE OPEN DETECTION - VOLTAGE MONITORING: CPU VCORE, +12V, +5V, +3.3V FORM FACTOR - MICRO ATX FORM FACTOR: 7.76-IN X 7.4-IN, 19.7 CM X 18.8 CM - SOLID CAPACITOR DESIGN OS - MICROSOFT® WINDOWS® 10 64-BIT / 11 64-BIT CERTIFICATIONS - FCC, CE - ERP/EUP READY (ERP/EUP READY POWER SUPPLY IS REQUIRED) |
