Back to UPS

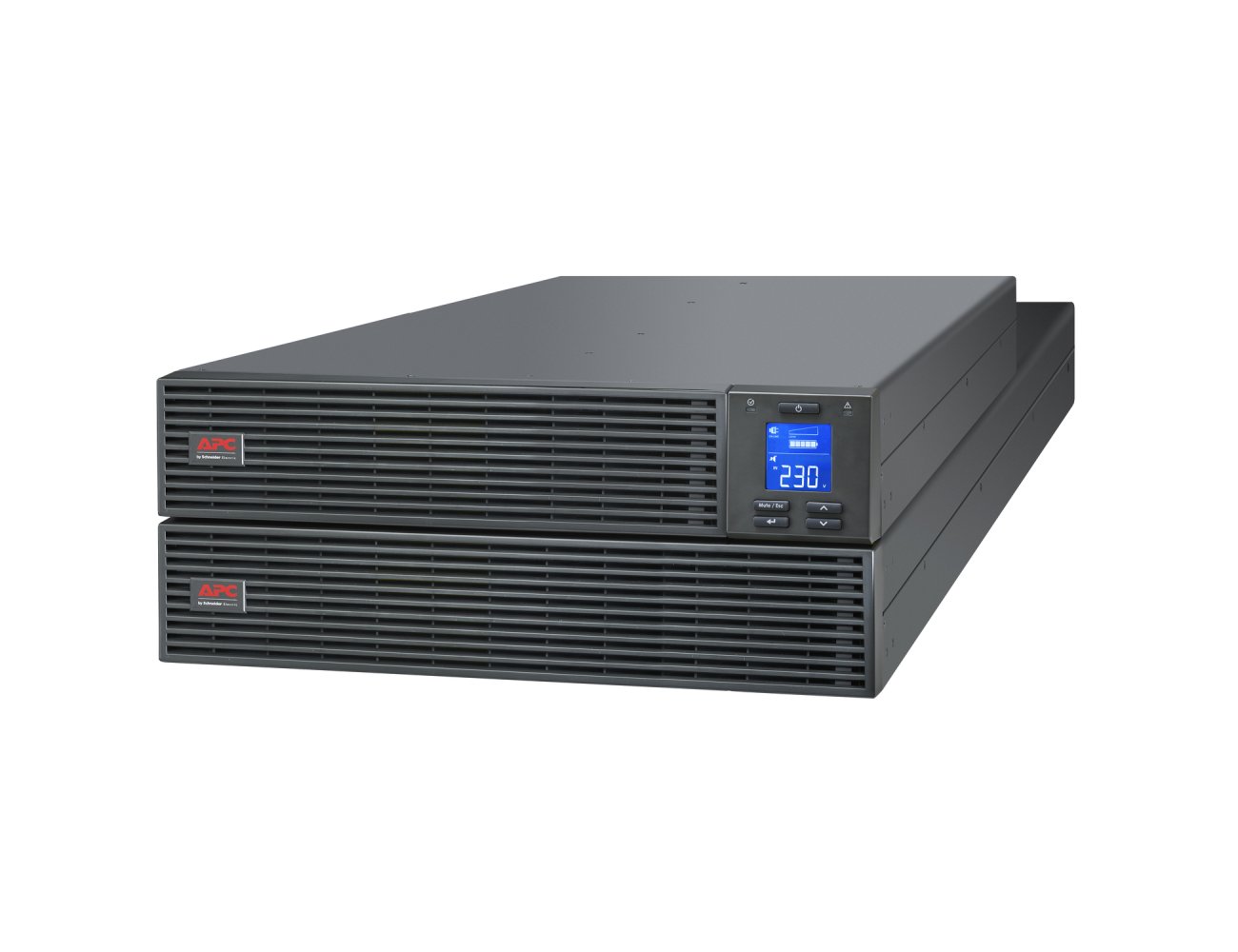

APC SRV6KRIRK On-Line 6kVA/6kW

ՊԱՀԵՍՏՈՒՄ: In stock 10 ՆՄՈՒՇ
1499000 AMD 1103900 AMD

Բրենդ:

ՊԱՀԵՍՏՈՒՄ:

ԲԱԺԻՆՆԵՐ: UPS

Specifications

Overview
PresentationHigh quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Lead timeUsually in Stock
Main
Run time for load
W
information_stroke
Min-max: 600-6000 W
4min 1s
Max. Capacity Used
information_stroke
100 %
Main Input Voltage230 V
Product or component typeUninterruptible power supply (UPS)
Other Input Voltage220 V
240 V
Main Output Voltage230 V
Other Output Voltage220 V
240 V
rated power in W6000 W
rated power in VA6000 VA
Output connector typeHard wire 3-wire (1P + N + E) 1
Number of rack unit4U
Provided equipment1 user manual
1 RS-232 configuration cable
2 rack mounting brackets
2 rack mounting support rails
1 external battery pack
1 battery cable
user manual
Range of productEasy UPS On-Line
Batteries & Runtime
Run Time
View Runtime Graph
Efficiency
View Efficiency Graph
Battery typeLead-acid battery
Battery voltage192 V
Extended runtime0
Number of battery filled slots0
Number of battery free slots0
Battery recharge time4 h
Battery life3…5 year(s)
Battery charger power235 W rated
General
Number of power module filled slots0
Number of power module free slots0
RedundantNo
Physical
ColourBlack (RAL 7010)
Height17.3 cm
Width43.8 cm
Depth71.0 cm
Net weight61 kg
Mounting locationFront
Mounting preferenceLower
Mounting modeRack-mounted
USB compatibleYes
Mounting positionHorizontal
Input
Input voltage limits110...300 V 60 % load
176...300 V full load
Number of input connectors1 hard wire 3-wire (1P + N + E)
Network frequency40...70 Hz auto sensing
Output
Maximum configurable power in VA6000 VA
Maximum configurable power in W6000 W
Output frequency50/60 Hz +/- 3 Hz sync to mains
Harmonic distortion1 %
UPS typeDouble conversion online
Wave typeSine wave
Efficiency94 % (full load)
Additional informationConfigurable for 220 : 230 or 240 nominal output voltage
Bypass typeInternal bypass (automatic and manual)
Crest factor3 : 1
Conformance
Product certificationsCE
UKCA
EAC
TISI
StandardsEN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental
ambient air temperature for operation0…40 °C
Relative humidity0…95 % non-condensing
Operating altitude0...3000 m
Ambient air temperature for storage-15…60 °C
Storage Relative Humidity0…95 % non-condensing
Storage altitude0…15000 m
Acoustic level55 dBA
Heat dissipation1172 Btu/h
IP degree of protectionIP20
Communications & Management
AlarmAlarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency power offYes
Free slots1
control panelMultifunction LCD status and control console
Surge Protection and Filtering
Surge energy rate600 J
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height123.19 cm
Package 1 Width83.6 cm
Package 1 Length60 cm
Package 1 Weight71 kg
