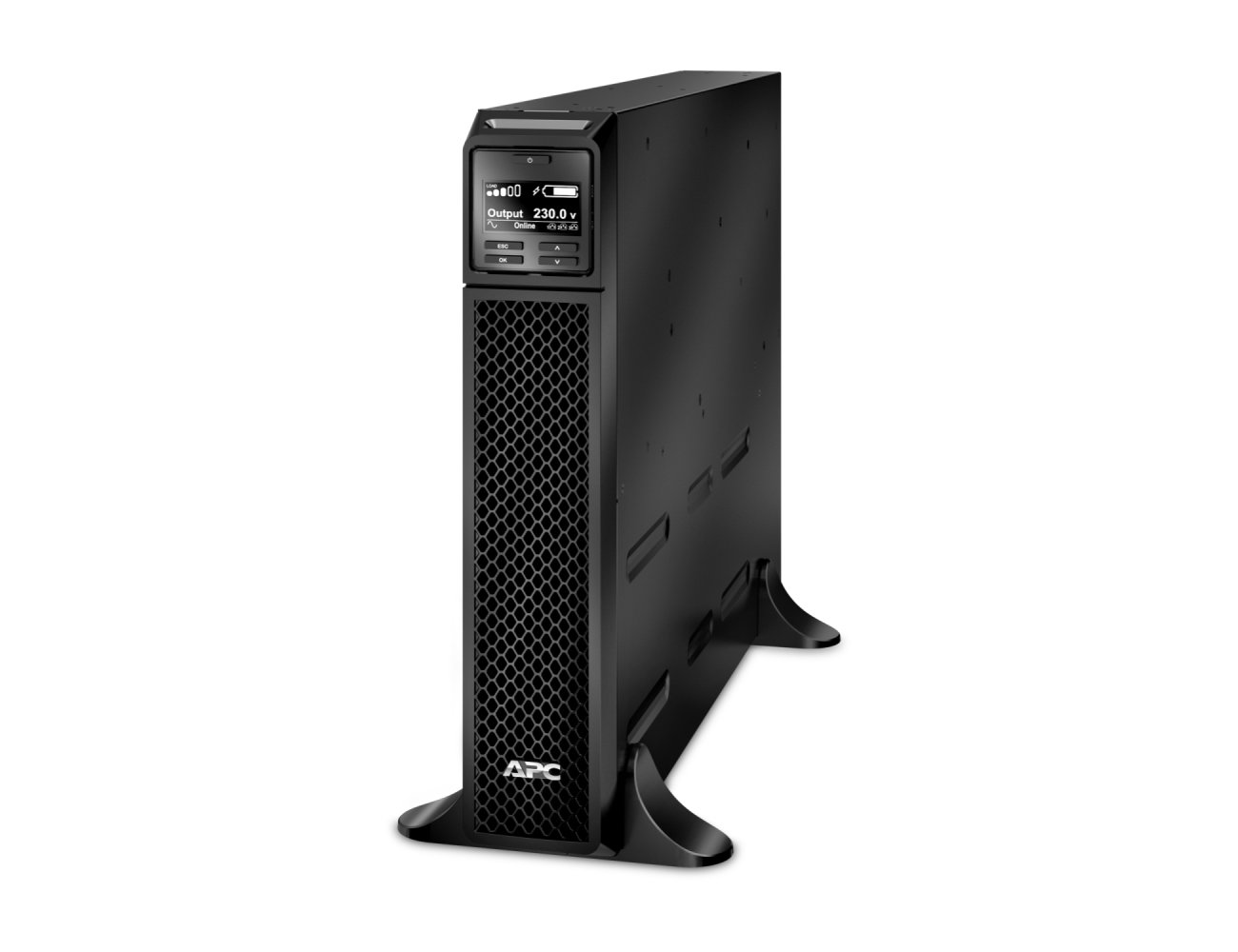

APC SRT3000XLI Smart-UPS On-Line 3kVA

ՊԱՀԵՍՏՈՒՄ: In stock 10 ՆՄՈՒՇ
1499000 AMD

Բրենդ:

ՊԱՀԵՍՏՈՒՄ:

ԲԱԺԻՆՆԵՐ: UPS

Specifications

Overview
PresentationHigh density, double-conversion on-line power protection with scalable runtime.
Lead timeUsually in Stock
Main
Run time for load
W
information_stroke
Min-max: 270-2700 W
3min 58s
Max. Capacity Used
information_stroke
100 %
Main Input Voltage230 V
Product or component typeUninterruptible power supply (UPS)
Other Input Voltage220 V
240 V
Main Output Voltage230 V
Other Output Voltage220 V
240 V
rated power in W2700 W
rated power in VA3000 VA
Input Connection TypeIEC 60320 C20
Schuko CEE 7 / EU1-16P
output connection type8 IEC 60320 C13
2 IEC Jumpers
2 IEC 60320 C19
Cable length2.4 m
Number of cables3
Provided equipmentCD with software
Country-specific detachable power cord
Documentation CD
Installation guide
Removable support feet
USB cable
Warranty card
Range of productSmart-UPS On-Line
Batteries & Runtime
Run Time
View Runtime Graph
Efficiency
View Efficiency Graph
Battery typeLead-acid battery
Battery voltage96 V
Extended runtime1
Battery recharge time3 h
Number of battery replacement quantity1
Battery life3…5 year(s)
Replacement battery
APCRBC152
Battery charger power168 W rated
General
Number of power module filled slots0
Number of power module free slots0
product web sub-familyHigh density
RedundantNo
UPS typeDouble conversion online
Physical
ColourBlack
Height43.2 cm
Width8.5 cm
Depth63.5 cm
Net weight31.3 kg
Mounting locationFront
Mounting preferenceLower
Mounting modeRack-mounted with kit
Two post mountable0
USB compatibleYes
Mounting positionVertical
Input
Input voltage limits100...275 V adjustable (half load)
Network frequency40...70 Hz auto-sensing
Output
Bypass typeInternal bypass (automatic and manual)
Crest factor3 : 1
Harmonic distortionLess than 2 %
Maximum configurable power in VA3000 VA
Maximum configurable power in W2700 W
Wave typeSine wave
Output frequency50/60 Hz +/- 3 Hz sync to mains
Additional informationConfigurable for 220 : 230 or 240 nominal output voltage
Conformance
Product certificationsCE
EAC
RCM
VDE
UK PSTI
MarkingCE Mark
StandardsEN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental
Acoustic level55 dBA
Heat dissipation703 Btu/h
Operating altitude0...10000 ft
ambient air temperature for operation0…40 °C
Ambient air temperature for storage-15…45 °C
Storage altitude0.0000000000…15240.0000000000 m
IP degree of protectionIP20
Relative humidity0…95 % non-condensing
Storage Relative Humidity0…95 % non-condensing
Communications & Management
Emergency power offYes
Free slots1
AlarmAudible and visible alarms : prioritized by severity
Surge Protection and Filtering
Surge energy rate340 J
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height40.000 cm
Package 1 Width80.000 cm
